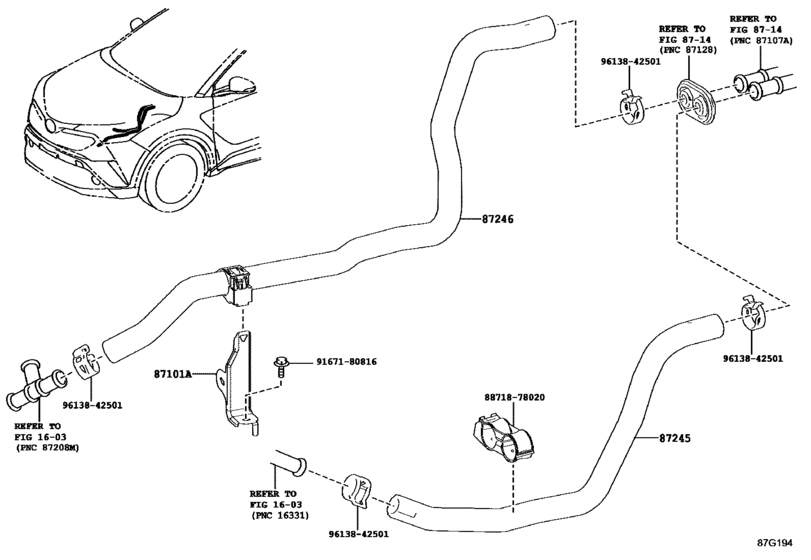

Heating & Air Conditioning - Water Piping ([12.2016 - ] (1612- )6F) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87101A
|
87101A
87121-10020
Bracket Sub-Assy, Heater No.1
[12.2016 -] NGX10..6F |
87121-10020 |
— | ||
|
87245
|
87245
87245-10470 Hose, Heater Water, Inlet[12.2016 -] NGX10,50 |
87245-10470 |
US $23.59 |
||
|
87246
|
87246
87209-10350
Hose, Heater Water, Outlet
[12.2016 -] NGX10..6F |
87209-10350 |
— | ||
|
8871878020
|
8871878020
88718-78020
Pipe, Cooler Refrigerant Suction, No.2
|
88718-78020 |
— | ||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
|
9613842501
|
9613842501
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-42501 |
from US $2.96 |
