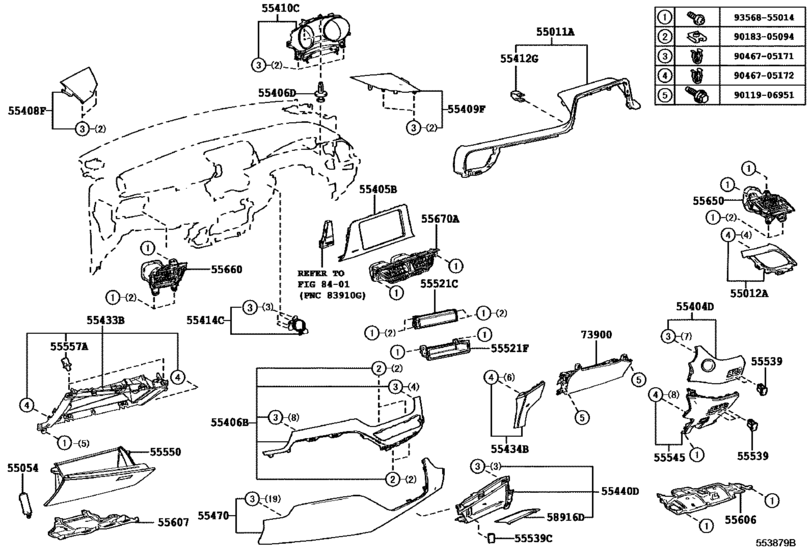

Instrument Panel & Glove Compartment ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011A
|
55011A
55011-10180-B1 Garnish Sub-Assy, Instrument Panel, No.1[12.2016 -] NGX10,50..LUX SOFT SILVER,TRIM2# |
55011-10180-B1 |
US $88.56 |
||
|
55012A
|
55012A
55012-10010-B1 Garnish Sub-Assy, Instrument Panel, No.2[12.2016 -] NGX10,50..LUX SOFT SILVER,TRIM2# |
55012-10010-B1 |
US $43.83 |
||
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[12.2016 -] NGX10,50 |
55054-47010 |
from US $15.87 |
||
|
55404D
|
55404D
55404-10160-C1 Panel Sub-Assy, Instrument Cluster Finish[12.2016 -] NGX10,50..LUX BLACK,TRIM2# |
55404-10160-C1 |
US $49.07 |
||
|
55405B
|
55405B
55405-10340 Panel Sub-Assy, Instrument Cluster Finish, Center[12.2016 -] NGX10,50 |
55405-10340 |
US $101.68 |
||
|
55406B
|
55406B
55406-10030 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[12.2016 -] NGX10,50 |
55406-10030 |
US $105.60 |
||
|
55406D
|
55406D
90467-06165-C3 Clip(For Panel, Instrument Cluster Finish)[12.2016 -] NGX10,50 BLACK |
90467-06165-C3 |
US $1.61 |
||
|
55408F
|
55408F
55408-10040-C1 Panel Sub-Assy, Instrument Panel Speaker, No.1[12.2016 -] NGX10,50 BLACK,TRIM2# |
55408-10040-C1 |
US $25.92 |
||
|
55409F
|
55409F
55409-10040-C1 Panel Sub-Assy, Instrument Panel Speaker, No.2[12.2016 -] NGX10,50 BLACK,TRIM2# |
55409-10040-C1 |
US $24.62 |
||
|
55410C
|
55410C
55410-10130 Panel Assy, Instrument Cluster Finish[12.2016 -] NGX10,50 |
55410-10130 |
US $129.29 |
||
|
55412G
|
55412G
90467-05172 Clip, Instrument Panel, No.1[12.2016 -] NGX10,50 |
90467-05172 |
US $1.08 |
||
|
55414C
|
55414C
55414-10090 Bezel, Starter Switch[12.2016 -] NGX10,50..LUX |
55414-10090 |
US $7.86 |
||
|
55433B
|
55433B
55433-10040-C1 Panel, Instrument Panel Finish, Lower No.2[12.2016 -] NGX10,50 BLACK,TRIM2# |
55433-10040-C1 |
US $78.62 |
||
|
55434B
|
55434B
55434-10030-C1 Panel, Instrument Panel Finish, Lower Center[12.2016 -] NGX10,50 BLACK,TRIM2# |
55434-10030-C1 |
US $26.35 |
||
|
55440D
|
55440D
55440-10010 Box Assy, Instrument Panel[12.2016 -] NGX10,50 |
55440-10010 |
US $39.17 |
||
|
55470
|
55470
55470-10010-C1 Garnish Assy, Instrument Cluster Finish Panel[12.2016 -] NGX10,50 BLACK,TRIM2# |
55470-10010-C1 |
US $190.40 |
||
|
55521C
|
55521C
55521-12190 Cover, Stereo OpeningSTEREO OPENING [12.2016 -] NGX10,50 |
55521-12190 |
US $27.05 |
||
|
55521F
|
55521F
55521-52020 Cover, Stereo Opening[12.2016 -] NGX10,50 |
55521-52020 |
US $20.33 |
||
|
55539
|
55539
55539-28160-C1 Cover, Spare Switch Hole[12.2016 -] NGX10,50 BLACK,TRIM2# |
55539-28160-C1 |
US $5.56 |
||
|
55539C
|
55539C
55539-52060-C0 Cover, Spare Switch Hole[12.2016 - 01.2017] NGX10,50 BLACK |
55539-52060-C0 |
from US $3.43 |
||
|
55539C
|
55539C
55539-52060-C4 Cover, Spare Switch Hole[01.2017 -] NGX10,50 BLACK |
55539-52060-C4 |
from US $3.24 |
||
|
55545
|
55545
55545-10200-C1 Cover, Fuse Box Opening[12.2016 -] NGX10,50 BLACK,TRIM2# |
55545-10200-C1 |
US $37.86 |
||
|
55550
|
55550
55550-10100-C1 Door Assy, Glove Compartment[12.2016 -] NGX10,50 BLACK,TRIM2# |
55550-10100-C1 |
US $128.13 |
||
|
55557A
|
55557A
55557-10040 Cushion, Glove Compartment Door Check[12.2016 -] NGX10,50 |
55557-10040 |
US $1.43 |
||
|
55606
|
55606
55606-10020 Cover Sub-Assy, Instrument Panel Under, No.1[12.2016 -] NGX10,50..LUX |
55606-10020 |
US $31.60 |
||
|
55607
|
55607
55607-10020 Cover Sub-Assy, Instrument Panel Under, No.2[12.2016 -] NGX10,50..LUX |
55607-10020 |
US $29.41 |
||
|
55650
|
55650
55650-10140 Register Assy, Instrument Panel, No.1[12.2016 -] NGX10,50 |
55650-10140 |
US $104.83 |
||
|
55660
|
55660
55660-10060 Register Assy, Instrument Panel, No.2[12.2016 -] NGX10,50 |
55660-10060 |
US $84.45 |
||
|
55670A
|
55670A
55670-10030 Register Assy, Instrument Panel, Center[12.2016 -] NGX10,50 |
55670-10030 |
US $144.14 |
||
|
58916D
|
58916D
58916-10020 Mat, Box Bottom[12.2016 -] NGX10,50 |
58916-10020 |
US $12.54 |
||
|
73900
|
73900
73900-10010-C1
Air Bag Assy, Instrument Panel, Lower No.1
[12.2016 -] NGX10,50 BLACK,TRIM2# |
73900-10010-C1 |
— | ||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.62 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
