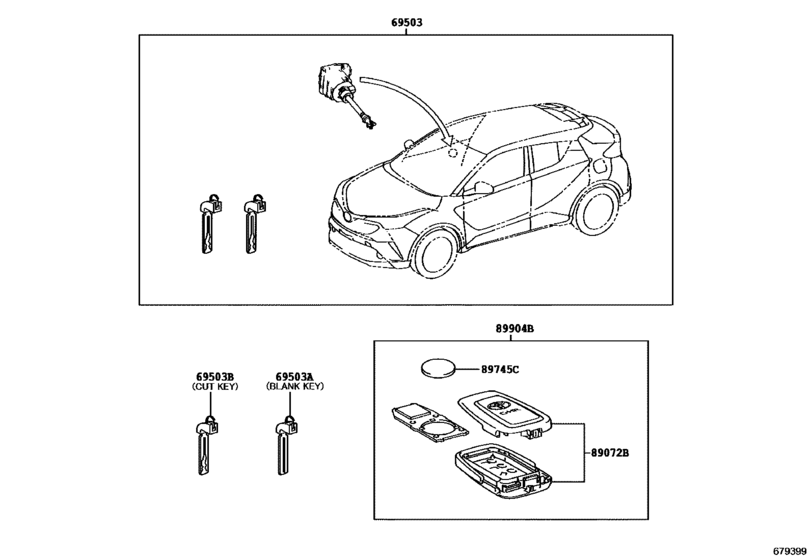

Lock Cylinder Set ([12.2016 - ] W(SMART ENTRY) (1612- )LUX) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-10410
Cylinder Set, Lock
[12.2016 -] NGX10,50..LUX |
69005-10410 |
— | ||
|
69503A
|
69503A
69515-47030 Key, Blank[12.2016 -] NGX10,50..LUX MASTER KEY,W(*68) |
69515-47030 |
US $78.62 |
||
|
69503B
|
69503B
69515-47020
Key, Cut
[12.2016 -] NGX10,50..LUX MASTER KEY,W(*68) |
69515-47020 |
— | ||
|
89072B
|
89072B
89072-10030
Housing Set, Door Control Transmitter (For Smart Key)
[12.2016 -] NGX10,50..LUX |
89072-10030 |
— | ||
|
89745C
|
89745C
89745-50020 Battery, Transmitter[12.2016 -] NGX10,50..LUX CR2032 |
89745-50020 |
from US $7.88 |
||
|
89904B
|
89904B
89904-10030
Transmitter Sub-Assy, Electrical Key
[12.2016 -] NGX10,50..LUX |
89904-10030 |
— |
