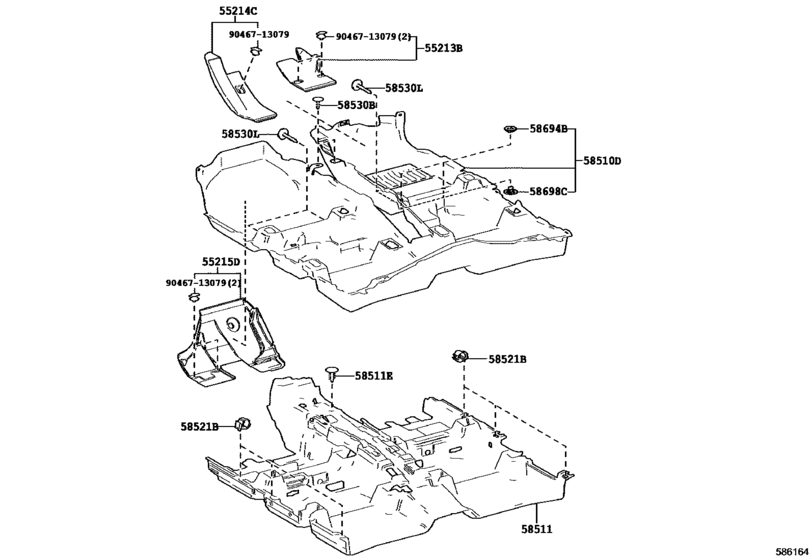

Mat & Carpet ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55213B
|
55213B
55213-10370 Pad, Dash Panel Insulator, No.1[12.2016 -] NGX10,50 |
55213-10370 |
US $13.35 |
||
|
55214C
|
55214C
55214-10260 Pad, Dash Panel Insulator, No.2[12.2016 -] NGX10,50 |
55214-10260 |
US $22.86 |
||
|
55215D
|
55215D
55215-10150 Pad, Dash Panel Insulator, No.3[12.2016 -] NGX10,50 |
55215-10150 |
US $39.66 |
||
|
58510D
|
58510D
58510-10A00-C2
Carpet Assy, Floor, Front
[12.2016 -] NGX10 BLACK,TRIM2# |
58510-10A00-C2 |
— | ||
|
58511
|
58511
58511-10520 Mat, Floor, Front[12.2016 -] NGX10 |
58511-10520 |
US $100.46 |
||
|
58511E
|
58511E
90467-07042-C0 Clip[12.2016 - 02.2017] NGX10,50 BLACK |
90467-07042-C0 |
US $1.25 |
||
| replacement | |||||
|
58511E
|
58511E
90467-06175 Clip(For Luggage Compartment Door)[12.2016 - 02.2017] NGX10,50 BLACK |
90467-06175 |
US $3.94 |
||
|
58511E
|
58511E
90467-07042-C4 Clip[02.2017 -] NGX10,50 BLACK |
90467-07042-C4 |
from US $0.59 |
||
|
58521B
|
58521B
58521-47030 Hook, Floor Carpet[12.2016 -] NGX10,50 |
58521-47030 |
US $5.38 |
||
|
58530B
|
58530B
90467-05164-C7 Clip(For Front Floor Silencer)[12.2016 -] NGX10,50 BLACK,TRIM2# |
90467-05164-C7 |
from US $0.59 |
||
|
58530L
|
58530L
64726-10020-C2 Clip, Floor Carpet, Center[12.2016 -] NGX10,50 BLACK,TRIM2# |
64726-10020-C2 |
US $2.69 |
||
|
58694B
|
58694B
58694-78010 Plate, Mat Set, Upper[12.2016 -] NGX10,50 |
58694-78010 |
from US $1.68 |
||
|
58698C
|
58698C
58698-78010 Plate, Mat Set, Lower[12.2016 -] NGX10,50 |
58698-78010 |
from US $3.94 |
||
|
9046713079
|
9046713079
90467-13079 Clip |
90467-13079 |
US $2.15 |
||
