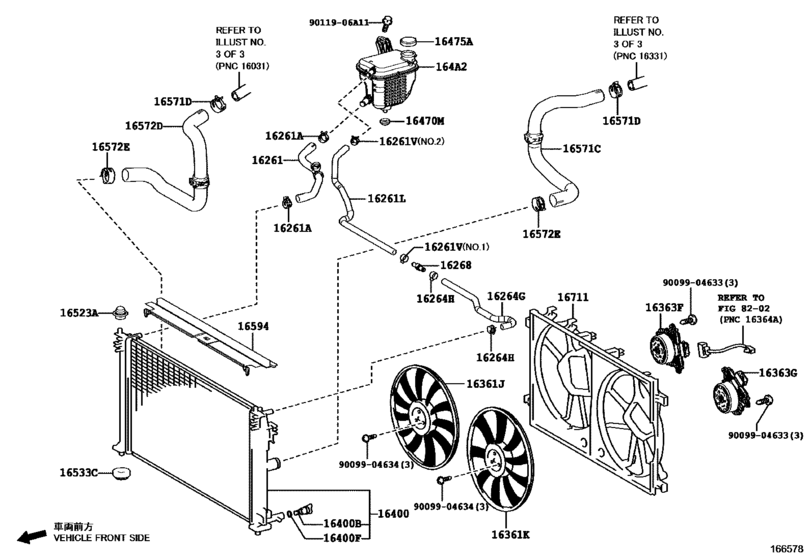

Radiator & Water Outlet ([12.2016 - ] RADIATOR SIDE (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
164A2
|
164A2
164A2-37012 Tank, Reserve Sealed W/o Cap[12.2016 -] 8NRFTS..NGX10,50 |
164A2-37012 |
from US $32.76 |
||
|
16261
|
16261
16261-47160 Hose, Water By-Pass[12.2016 -] 8NRFTS..NGX10,50 |
16261-47160 |
US $13.35 |
||
|
16261A
|
16261A
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)[12.2016 -] 8NRFTS..NGX10,50 |
96138-42501 |
from US $2.94 |
||
|
16261L
|
16261L
16267-47050 Hose, Water By-Pass[12.2016 -] 8NRFTS..NGX10,50 |
16267-47050 |
US $12.80 |
||
|
16261V
|
16261V
96136-41901 Clip Or Clamp(For Ventilation Hose)[12.2016 -] 8NRFTS..NGX10,50 NO.1:REFER ILLUST. |
96136-41901 |
from US $2.11 |
||
|
16261V
|
16261V
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[12.2016 -] 8NRFTS..NGX10,50 NO.2:REFER ILLUST. |
96136-42101 |
from US $2.93 |
||
|
16264G
|
16264G
16264-47080 Hose, Water By-Pass, No.3[12.2016 -] 8NRFTS..NGX10,50 |
16264-47080 |
US $10.04 |
||
|
16264H
|
16264H
96136-41901 Clip Or Clamp(For Ventilation Hose)[12.2016 -] 8NRFTS..NGX10,50 |
96136-41901 |
from US $2.11 |
||
|
16268
|
16268
16268-37120 Pipe, Water By-Pass, No.1[12.2016 -] 8NRFTS..NGX10,50 |
16268-37120 |
US $7.71 |
||
|
16361J
|
16361J
16361-37110 Fan, Rh[12.2016 -] 8NRFTS..NGX10,50 |
16361-37110 |
from US $76.56 |
||
|
16361K
|
16361K
16361-37100 Fan, Lh[12.2016 -] 8NRFTS..NGX10,50 |
16361-37100 |
from US $83.64 |
||
|
16363F
|
16363F
16363-47050 Motor, Cooling Fan, Rh[12.2016 -] 8NRFTS..NGX10,50 |
16363-47050 |
from US $333.72 |
||
|
16363G
|
16363G
16363-47060 Motor, Cooling Fan, Lh[12.2016 -] 8NRFTS..NGX10,50 |
16363-47060 |
from US $338.29 |
||
|
16400
|
16400
16400-47130 Radiator Assy[12.2016 -] 8NRFTS..NGX10,50 |
16400-47130 |
US $544.54 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[12.2016 -] 8NRFTS..NGX10,50 |
16417-21280 |
from US $3.49 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[12.2016 -] 8NRFTS..NGX10,50 |
16492-21050 |
from US $2.16 |
||
|
16470M
|
16470M
90480-18010 Grommet, Radiator Reserve Tank Hose[12.2016 -] 8NRFTS..NGX10,50 |
90480-18010 |
from US $2.16 |
||
|
16475A
|
16475A
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[12.2016 -] 8NRFTS..NGX10,50 |
16475-28140 |
from US $20.16 |
||
|
16523A
|
16523A
16523-37010 Cushion, Radiator Support[12.2016 -] 8NRFTS..NGX10,50 |
16523-37010 |
from US $3.80 |
||
|
16533C
|
16533C
90480-40021 Grommet(For Radiator Support)[12.2016 -] 8NRFTS..NGX10,50 |
90480-40021 |
from US $3.94 |
||
|
16571C
|
16571C
16571-47110 Hose, Radiator, No.1[12.2016 -] 8NRFTS..NGX10,50 |
16571-47110 |
US $20.09 |
||
|
16571D
|
16571D
90466-40001 Clip, Radiator Hose, No.1[12.2016 -] 8NRFTS..NGX10,50 |
90466-40001 |
US $4.30 |
||
|
16572D
|
16572D
16572-47130 Hose, Radiator, No.2[12.2016 -] 8NRFTS..NGX10,50 |
16572-47130 |
US $17.88 |
||
|
16572E
|
16572E
90466-43002 Clip, Radiator Hose, No.1[12.2016 -] 8NRFTS..NGX10,50 |
90466-43002 |
from US $3.33 |
||
|
16594
|
16594
16594-47010 Guide, Radiator Air, No.2[12.2016 -] 8NRFTS..NGX10,50 |
16594-47010 |
US $43.18 |
||
|
16711
|
16711
16711-47110 Shroud, Fan[12.2016 -] 8NRFTS..NGX10,50 |
16711-47110 |
US $93.48 |
||
|
9011906A11
|
9011906A11
90119-06A11 BOLT WWASHER |
90119-06A11 |
US $1.08 |
