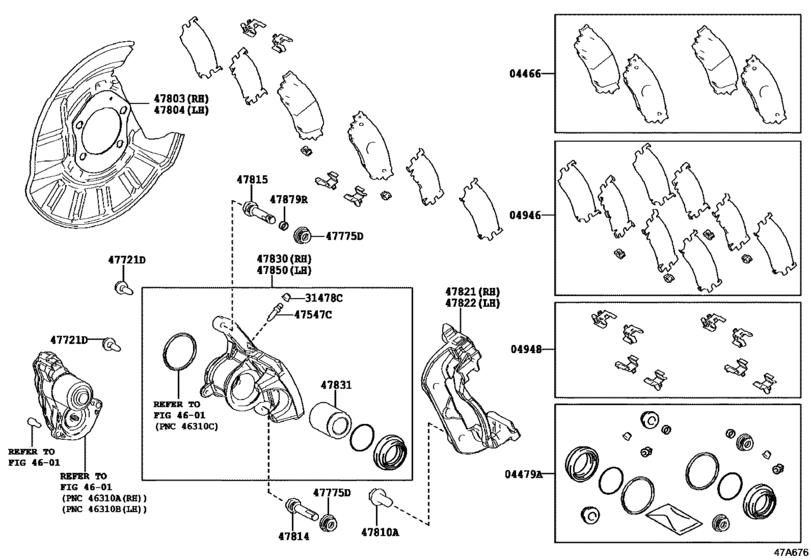

Rear Disc Brake Caliper & Dust Cover ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-10010 Pad Kit, Disc Brake, Rear[12.2016 -] NGX10,50 MARK AK NS554 |
04466-10010 |
from US $67.41 |
||
|
04479A
|
04479A
04479-10090 Cylinder Kit, Disc Brake, Rear[12.2016 - 05.2017] NGX10,50 |
04479-10090 |
US $46.59 |
||
|
04946
|
04946
04946-48130 Shim Kit, Anti Squeal(For Rear Disc Brake)[12.2016 -] NGX10,50 |
04946-48130 |
from US $29.90 |
||
|
04948
|
04948
04948-58010 Fitting Kit, Disc Brake, Rear[12.2016 -] NGX10,50 |
04948-58010 |
US $17.47 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[12.2016 -] NGX10,50 |
31478-30010 |
from US $1.50 |
||
|
47547C
|
47547C
47547-20010 Plug, Bleeder(For Release Cylinder)[12.2016 -] NGX10,50 |
47547-20010 |
from US $3.58 |
||
|
47721D
|
47721D
90015-AA603 Bolt(For Rear Disc Brake Cylinder Mouting)[12.2016 -] NGX10,50 *8-1.00PX23-12.5 |
90015-AA603 |
from US $2.67 |
||
|
47775D
|
47775D
47775-52190 Boot, Bush Dust(For Front Disc Brake)[12.2016 - 02.2017] NGX10,50 |
47775-52190 |
from US $3.39 |
||
|
47775D
|
47775D
47875-33270 Boot, Bush Dust(For Rear Disc Brake)[02.2017 -] NGX10,50 |
47875-33270 |
from US $0.82 |
||
|
47803
|
47803
47803-33010 Cover Sub-Assy, Disc Brake Dust, Rear Rh[12.2016 -] NGX10,50 |
47803-33010 |
from US $20.83 |
||
|
47804
|
47804
47804-33010 Cover Sub-Assy, Disc Brake Dust, Rear Lh[12.2016 -] NGX10,50 |
47804-33010 |
from US $20.83 |
||
|
47810A
|
47810A
90105-12174 Bolt, Hexagon(For Rear Caliper)[12.2016 -] NGX10,50 |
90105-12174 |
from US $1.44 |
||
|
47814
|
47814
47814-78010 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[12.2016 -] NGX10,50 |
47814-78010 |
from US $8.01 |
||
|
47815
|
47815
47815-78010 Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)[12.2016 -] NGX10,50 |
47815-78010 |
from US $8.23 |
||
|
47821
|
47821
47821-10030 Mounting, Rear Disc Brake Cylinder, Rh[12.2016 -] NGX10,50 |
47821-10030 |
US $73.58 |
||
|
47822
|
47822
47822-10030 Mounting, Rear Disc Brake Cylinder, Lh[12.2016 -] NGX10,50 |
47822-10030 |
from US $64.56 |
||
|
47830
|
47830
47830-10030 Cylinder Assy, Disc Brake, Rear Rh[12.2016 -] NGX10,50 |
47830-10030 |
US $539.76 |
||
|
47831
|
47831
47831-10030 Piston, Rear Disc Brake[12.2016 -] NGX10,50 |
47831-10030 |
US $14.34 |
||
|
47850
|
47850
47850-10030 Cylinder Assy, Disc Brake, Rear Lh[12.2016 -] NGX10,50 |
47850-10030 |
US $539.76 |
||
|
47879R
|
47879R
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[12.2016 -] NGX10,50 |
47769-50010 |
from US $0.76 |
