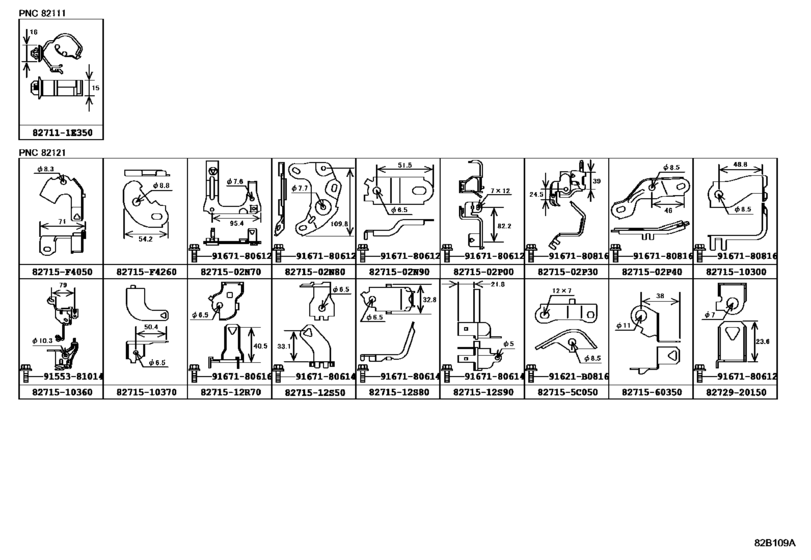

Wiring & Clamp ([12.2016 - ] CLAMP & BRACKET (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82715F4260
|
82715F4260
82715-F4260 Bracket,wiring Harness Clamp |
82715-F4260 |
US $3.93 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
827155C050
|
827155C050
82715-5C050
Bracket,wiring Harness Clamp
|
82715-5C050 |
— | ||
|
8271502N70
|
8271502N70
82715-02N70 Bracket,wiring Harness Clamp |
82715-02N70 |
US $3.93 |
||
|
8271502N80
|
8271502N80
82715-02N80 Bracket,wiring Harness Clamp |
82715-02N80 |
US $8.15 |
||
|
8271502N90
|
8271502N90
82715-02N90 Bracket,wiring Harness Clamp |
82715-02N90 |
US $3.20 |
||
|
8271502P00
|
8271502P00
82715-02P00 Bracket,wiring Harness Clamp |
82715-02P00 |
US $12.08 |
||
|
8271502P30
|
8271502P30
82715-02P30 Bracket,wiring Harness Clamp |
82715-02P30 |
US $15.29 |
||
|
8271502P40
|
8271502P40
82715-02P40 Bracket,wiring Harness Clamp |
82715-02P40 |
US $4.66 |
||
|
8271512R70
|
8271512R70
82715-12R70 Bracket,wiring Harness Clamp |
82715-12R70 |
US $3.93 |
||
|
8271512S50
|
8271512S50
82715-12S50 Bracket,wiring Harness Clamp |
82715-12S50 |
US $3.35 |
||
|
8271512S80
|
8271512S80
82715-12S80 Bracket,wiring Harness Clamp |
82715-12S80 |
US $3.93 |
||
|
8271512S90
|
8271512S90
82715-12S90 Bracket,wiring Harness Clamp |
82715-12S90 |
US $7.13 |
||
|
8271510300
|
8271510300
82715-10300 Bracket,wiring Harness Clamp |
82715-10300 |
US $3.93 |
||
|
8271510360
|
8271510360
82715-10360 Bracket,wiring Harness Clamp |
82715-10360 |
US $10.92 |
||
|
8271510370
|
8271510370
82715-10370 Bracket,wiring Harness Clamp |
82715-10370 |
US $4.51 |
||
|
8272920150
|
8272920150
82729-20150 New Genuine Part |
82729-20150 |
US $1.89 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
