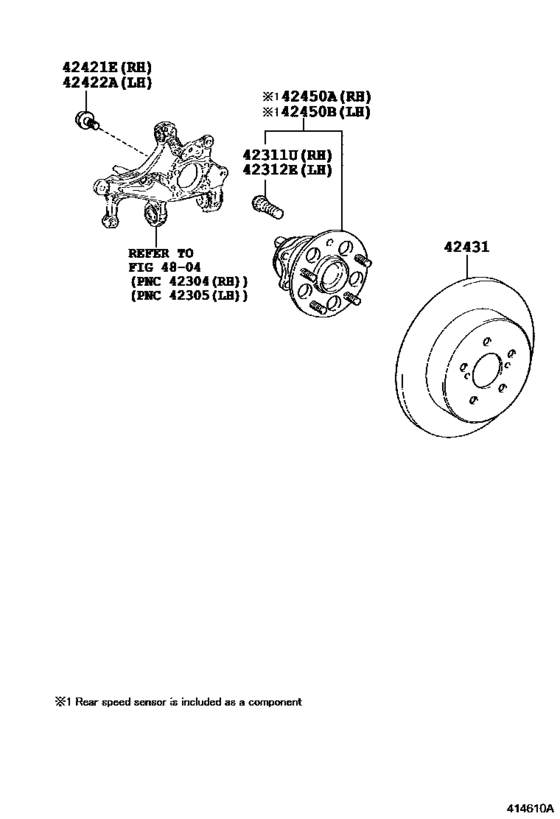

Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NGX10
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 10.2016
- Gear Shift Type
- 6F
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90942-02082 Bolt, Hub[10.2016 -] NGX10,50 |
90942-02082 |
from US $2.32 |
||
|
42312E
|
42312E
90942-02082 Bolt, Hub[10.2016 -] NGX10,50 |
90942-02082 |
from US $2.32 |
||
|
42421E
|
42421E
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[10.2016 -] NGX10,50 (J) |
90105-12350 |
from US $1.27 |
||
|
42421E
|
42421E
90105-W0164
Bolt (For Rear Axle Bearing Case Rh)
[10.2016 -] NGX10,50 (L) |
90105-W0164 |
— | ||
|
42422A
|
42422A
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[10.2016 -] NGX10,50 (J) |
90105-12350 |
from US $1.27 |
||
|
42422A
|
42422A
90105-W0164
Bolt (For Rear Axle Bearing Case Rh)
[10.2016 -] NGX10,50 (L) |
90105-W0164 |
— | ||
|
42431
|
42431
42431-78010 Disc, Rear[10.2016 -] NGX10,50 |
42431-78010 |
from US $108.24 |
||
|
42450A
|
42450A
42450-F4010
Hub & Bearing Assy, Rear Axle, Rh
[10.2016 -] NGX10 |
42450-F4010 |
— | ||
|
42450B
|
42450B
42450-F4010
Hub & Bearing Assy, Rear Axle, Rh
[10.2016 -] NGX10 |
42450-F4010 |
— |
