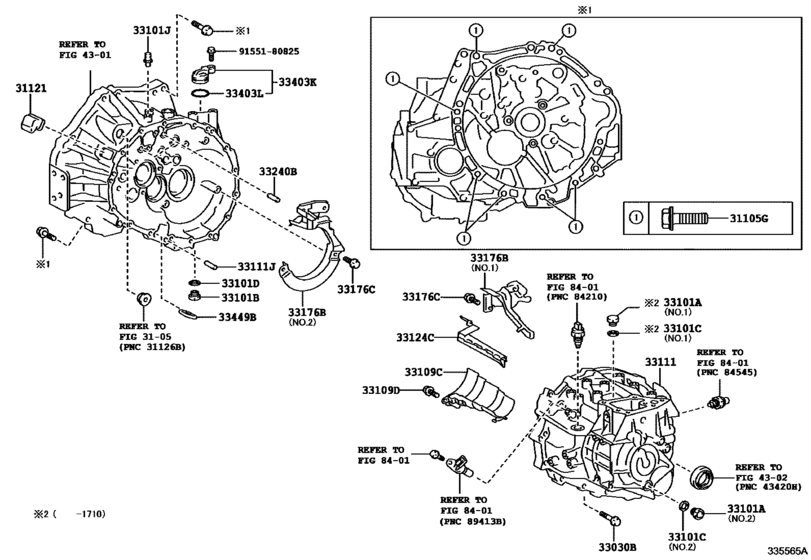

Clutch Housing & Transmission Case (Mtm) ([12.2016 - ] EC6A (1612- )6F) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91612-61045 Bolt(For Transaxle & Engine Setting)[12.2016 -] NGX10..6F *10-1.25PX45-30 |
91612-61045 |
from US $1.15 |
||
|
31121
|
31121
31121-05010
Cover, Clutch Housing, No.1
[12.2016 -] NGX10..6F |
31121-05010 |
— | ||
|
33030B
|
33030B
90105-W0209
Bolt(For Transaxle Case & Transmission Case Setting)
[12.2016 -] NGX10..6F *8-1.25PX40-22,(L) |
90105-W0209 |
— | ||
|
33030B
|
33030B
91551-10840 Bolt(For Transaxle Case & Transmission Case Setting)[12.2016 -] NGX10..6F *8-1.25PX40-22,(J) |
91551-10840 |
US $0.96 |
||
|
33101A
|
33101A
90341-14032 Plug, W/head Taper Screw, No.1[12.2016 - 10.2017] NGX10..6F NO.1:REFER ILLUST. |
90341-14032 |
US $2.61 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[12.2016 -] NGX10..6F NO.2:REFER ILLUST. |
90341-18033 |
from US $3.40 |
||
|
33101B
|
33101B
90341-18023 Plug, W/head Straight Screw, No.1[12.2016 -] NGX10..6F |
90341-18023 |
from US $3.40 |
||
|
33101C
|
33101C
12157-10010 Gasket (For Drain Plug)[12.2016 -] NGX10..6F NO.2:REFER ILLUST. |
12157-10010 |
from US $0.74 |
||
|
33101C
|
33101C
90430-14003 Gasket(For Manual Transmission Filler Plug)[12.2016 - 10.2017] NGX10..6F NO.1:REFER ILLUST. |
90430-14003 |
US $2.87 |
||
|
33101D
|
33101D
12157-10010 Gasket (For Drain Plug)[12.2016 -] NGX10..6F |
12157-10010 |
from US $0.74 |
||
|
33101J
|
33101J
90930-03133 Plug, Breather[12.2016 -] NGX10..6F |
90930-03133 |
from US $6.63 |
||
|
33109C
|
33109C
33109-0D011
Separator Sub-Assy, Manual Transmission Oil
[12.2016 -] NGX10..6F |
33109-0D011 |
— | ||
|
33109D
|
33109D
90105-W0035 Bolt(For Manual Transmission Oil Separator)[12.2016 -] NGX10..6F (L) |
90105-W0035 |
US $1.75 |
||
|
33109D
|
33109D
91551-80816 Bolt(For Manual Transmission Oil Separator)[12.2016 -] NGX10..6F (J) |
91551-80816 |
from US $0.99 |
||
|
33111
|
33111
33111-F4010
Case, Manual Transmission
[12.2016 - 10.2017] NGX10..6F |
33111-F4010 |
— | ||
|
33111J
|
33111J
90250-08054 Pin, Straight[12.2016 -] NGX10..6F L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
33124C
|
33124C
33124-F4010
Pipe, Oil Receiver, No.1(Mtm)
[12.2016 -] NGX10..6F |
33124-F4010 |
— | ||
|
33176B
|
33176B
33176-0D020
Separator, Transmission Oil(Mtm)
[12.2016 -] NGX10..6F NO.1:REFER ILLUST. |
33176-0D020 |
— | ||
|
33176B
|
33176B
33176-0D030
Separator, Transmission Oil(Mtm)
[12.2016 -] NGX10..6F NO.2:REFER ILLUST. |
33176-0D030 |
— | ||
|
33176C
|
33176C
90105-W0035 Bolt(For Manual Transmission Oil Separator)[12.2016 -] NGX10..6F (L) |
90105-W0035 |
US $1.75 |
||
|
33176C
|
33176C
91551-80816 Bolt(For Manual Transmission Oil Separator)[12.2016 -] NGX10..6F (J) |
91551-80816 |
from US $0.99 |
||
|
33240B
|
33240B
90250-08054 Pin, Straight[12.2016 -] NGX10..6F |
90250-08054 |
from US $0.98 |
||
|
33403K
|
33403K
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[12.2016 -] NGX10..6F |
33403-35230 |
from US $19.82 |
||
|
33403L
|
33403L
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[12.2016 -] NGX10..6F |
96711-24030 |
from US $2.20 |
||
|
33449B
|
33449B
33449-20010 Magnet, Transmission[12.2016 -] NGX10..6F |
33449-20010 |
US $5.97 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
