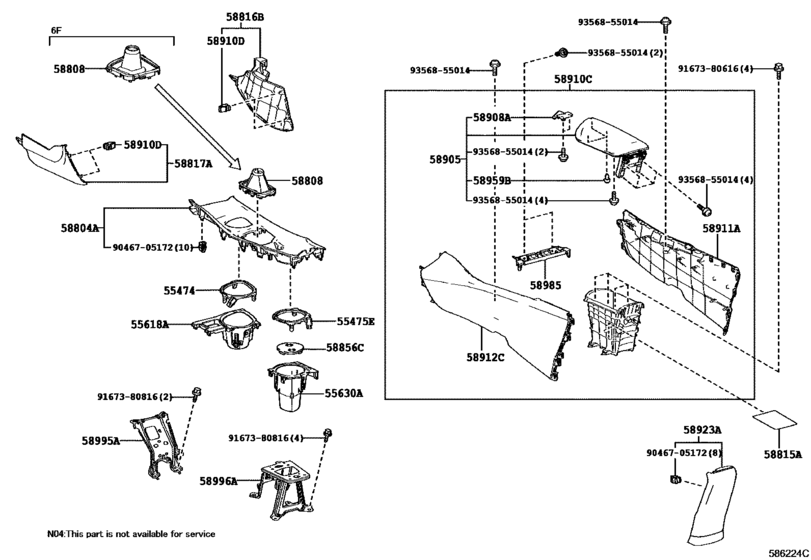

Console Box & Bracket ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55474
|
55474
55474-10130 Garnish, Instrument Cluster Finish Panel, Center[12.2016 -] NGX10,50..ACTV |
55474-10130 |
US $7.86 |
||
|
55475E
|
55475E
55475-10160 Garnish, Instrument Cluster Finish Panel, Center[12.2016 -] NGX10,50..ACTV |
55475-10160 |
US $7.86 |
||
|
55618A
|
55618A
55618-10010 Holder, Console Box Cup[12.2016 -] NGX10,50 |
55618-10010 |
US $44.12 |
||
|
55630A
|
55630A
55630-10010 Holder, Rear Console Box, Cup[12.2016 -] NGX10,50 |
55630-10010 |
US $38.73 |
||
|
58804A
|
58804A
58804-F4060
Panel Sub-Assy, Console, Upper
[12.2016 -] NGX10..6F..ACTV |
58804-F4060 |
— | ||
|
58808
|
58808
58808-F4020-C1
Cover Sub-Assy, Shifting Hole
[12.2016 -] NGX10..6F BLACK,TRIM2# |
58808-F4020-C1 |
— | ||
|
58815A
|
58815A
58815-10050 Carpet, Console Box[12.2016 -] NGX10,50 |
58815-10050 |
US $4.13 |
||
|
58816B
|
58816B
58816-10010-C1 Insert, Console Box[12.2016 -] NGX10,50 BLACK,TRIM2# |
58816-10010-C1 |
US $24.46 |
||
|
58817A
|
58817A
58817-10010-C1 Insert, Console Box, Front No.2[12.2016 -] NGX10,50 BLACK,TRIM2# |
58817-10010-C1 |
US $24.46 |
||
|
58856C
|
58856C
58856-10010 Holder, Console[12.2016 -] NGX10,50 |
58856-10010 |
US $10.57 |
||
|
58905
|
58905
58905-10020-C1 Door Sub-Assy, Console Compartment[12.2016 -] NGX10,50..ACTV BLACK,TRIM2# |
58905-10020-C1 |
US $167.44 |
||
|
58908A
|
58908A
58908-10010 Lock Sub-Assy, Console Compartment Door[12.2016 -] NGX10,50 |
58908-10010 |
US $10.92 |
||
|
58910C
|
58910C
58910-10040-C4 Box Assy, Console, Rear[12.2016 -] NGX10..ACTV BLACK,TRIM2# |
58910-10040-C4 |
US $414.96 |
||
|
58910D
|
58910D
90467-05172 Clip, Instrument Panel, No.1[12.2016 -] NGX10,50 |
90467-05172 |
US $1.08 |
||
|
58911A
|
58911A
58911-10060-C1 Panel, Box Side, No.1[12.2016 -] NGX10 BLACK,TRIM2# |
58911-10060-C1 |
US $97.55 |
||
|
58912C
|
58912C
58912-10010-C1 Panel, Box Side, No.2[12.2016 -] NGX10 BLACK,TRIM2# |
58912-10010-C1 |
US $97.55 |
||
|
58923A
|
58923A
58923-10030-C1 Panel, Console Rear End[12.2016 -] NGX10 BLACK,TRIM2# |
58923-10030-C1 |
US $45.86 |
||
|
58959B
|
58959B
58959-35010 Cushion, Console Compartment Door[12.2016 -] NGX10,50 |
58959-35010 |
US $1.31 |
||
|
58985
|
58985
58985-10020 Retainer, Console Box[12.2016 -] NGX10,50 |
58985-10020 |
US $12.38 |
||
|
58995A
|
58995A
58995-10070 Bracket, Console Box Mounting, No.1[12.2016 -] NGX10,50 |
58995-10070 |
US $19.36 |
||
|
58996A
|
58996A
58996-10070 Bracket, Console Box Mounting, No.2[12.2016 -] NGX10 |
58996-10070 |
US $32.91 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.78 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
