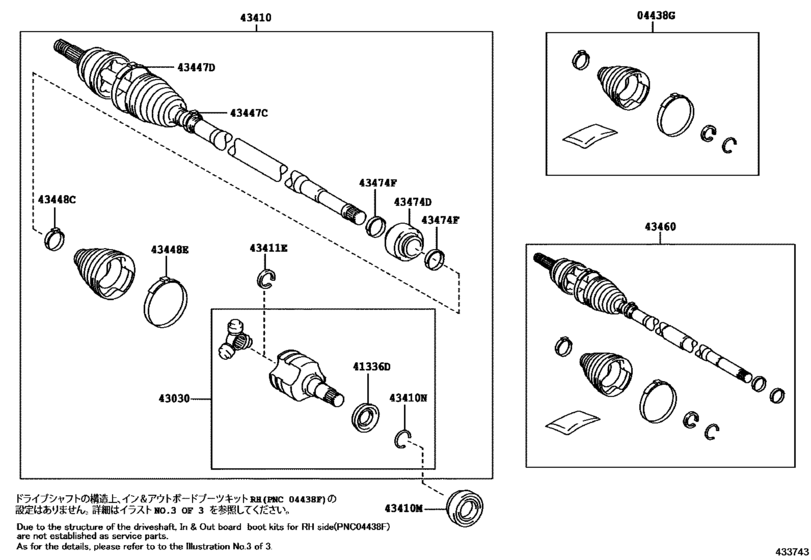

Front Drive Shaft ([12.2016 - ] RH (1612- )NGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04437-10020 Boot Kit, Front Drive Shaft Inboard Joint, Lh[12.2016 -] NGX10 |
04437-10020 |
US $69.72 |
||
|
41336D
|
41336D
41336-12060 Cover, Front Drive Shaft Dust, Rh[12.2016 -] NGX10 |
41336-12060 |
from US $3.20 |
||
|
43030
|
43030
43040-12120 Joint Assy, Front Drive Inboard[12.2016 -] NGX10 |
43040-12120 |
US $234.12 |
||
|
43410
|
43410
43410-10390
Shaft Assy, Front Drive, Rh
[12.2016 -] NGX10 |
43410-10390 |
— | ||
|
43410M
|
43410M
90311-35065 Oil Seal, Front Drive Shaft, Rh[12.2016 -] NGX10..6F |
90311-35065 |
from US $4.84 |
||
|
43410N
|
43410N
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[12.2016 -] NGX10 |
90521-27005 |
from US $1.66 |
||
|
43411E
|
43411E
43425-12070 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[12.2016 -] NGX10,50 |
43425-12070 |
US $0.72 |
||
|
43447C
|
43447C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[12.2016 -] NGX10,50 |
42345-12230 |
US $3.94 |
||
|
43447D
|
43447D
42345-12240 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[12.2016 -] NGX10,50 |
42345-12240 |
US $6.09 |
||
|
43448C
|
43448C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[12.2016 -] NGX10,50 |
42345-12230 |
US $3.94 |
||
|
43448E
|
43448E
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[12.2016 -] NGX10,50 |
42345-12180 |
US $5.91 |
||
|
43460
|
43460
43460-49445
Shaft Assy, Front Drive Outboard Joint, Rh
[12.2016 -] NGX10 |
43460-49445 |
— | ||
|
43474D
|
43474D
43474-47020 Damper, Front Drive Shaft, RhFRONT DRIVE SHAFT, RH [12.2016 -] NGX10 |
43474-47020 |
US $56.93 |
||
|
43474F
|
43474F
42345-12100 Clamp (For Drive Shaft Damper Setting)[12.2016 -] NGX10 |
42345-12100 |
US $2.33 |
