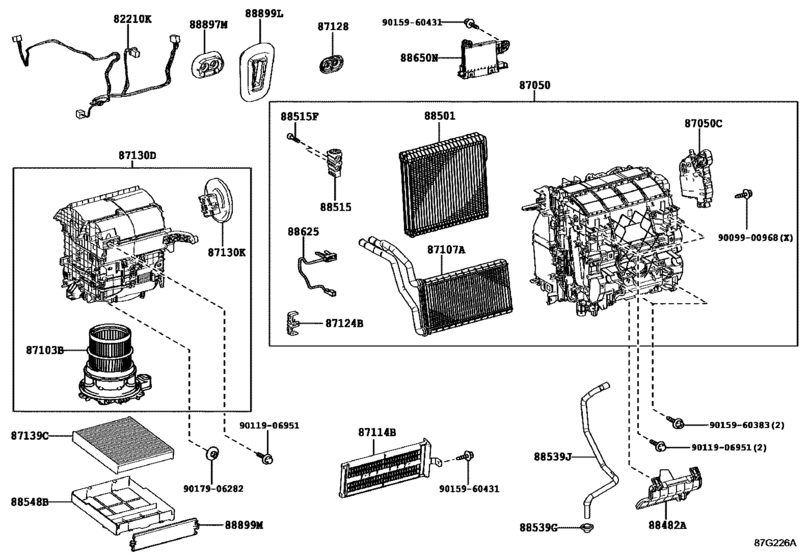

Heating & Air Conditioning - Cooler Unit ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-10010
Harness Assy, Air Conditioner
[12.2016 -] NGX10,50 |
82212-10010 |
— | ||
|
87050
|
87050
87050-10030 Radiator Assy, Air Conditioner[12.2016 -] NGX10,50 |
87050-10030 |
US $813.90 |
||
|
87050C
|
87050C
87106-48170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[12.2016 -] NGX10,50 |
87106-48170 |
from US $101.34 |
||
|
87103B
|
87103B
87103-58070
Motor Sub-Assy, Blower W/fan
[12.2016 -] NGX10,50 |
87103-58070 |
— | ||
|
87107A
|
87107A
87107-47070
Unit Sub-Assy, Heater Radiator
[12.2016 -] NGX10,50 |
87107-47070 |
— | ||
|
87114B
|
87114B
87114-47020
Cover, Heater
[12.2016 -] NGX10,50 |
87114-47020 |
— | ||
|
87124B
|
87124B
87124-33070 Clamp, Heater[12.2016 -] NGX10,50 |
87124-33070 |
from US $1.12 |
||
|
87128
|
87128
87128-28010 Grommet, Heater[12.2016 -] NGX10,50 |
87128-28010 |
from US $6.20 |
||
|
87130D
|
87130D
87130-58091
Blower Assy
[12.2016 -] NGX10,50 |
87130-58091 |
— | ||
|
87130K
|
87130K
87106-28250 Damper Servo Sub-Assy, Blower, No.1[12.2016 -] NGX10,50 |
87106-28250 |
US $113.85 |
||
|
87139C
|
87139C
87139-28020 Element, Air Refiner[12.2016 -] NGX10,50 POLLEN FILTER,OE PART |
87139-28020 |
from US $33.60 |
||
|
87139C
|
87139C
87139-58010 Filter, Clean Air (Charcoal)[12.2016 -] NGX10,50 DEODORANT FILTER |
87139-58010 |
from US $64.84 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ49 Filter, Cabin (Charcoal)[12.2016 -] NGX10,50 DEODORANT FILTER |
87139-YZZ49 |
US $118.81 |
||
|
88482A
|
88482A
87114-10100
Cover
[12.2016 -] NGX10,50 |
87114-10100 |
— | ||
|
88501
|
88501
88501-10170
Evaporator Sub-Assy, Cooler, No.1
[12.2016 -] NGX10,50 |
88501-10170 |
— | ||
|
88515
|
88515
88515-48110 Valve, Cooler Expansion[12.2016 -] NGX10,50 |
88515-48110 |
from US $100.29 |
||
|
88515F
|
88515F
90099-04542 Bolt(For Cooler Expansion Valve)[12.2016 -] NGX10,50 |
90099-04542 |
from US $1.15 |
||
|
88539G
|
88539G
88888-47010 Grommet (For Cooler Unit Drain Hose)[12.2016 -] NGX10,50 |
88888-47010 |
from US $3.35 |
||
|
88539J
|
88539J
88539-47050
Hose, Drain Cooler
[12.2016 -] NGX10,50 |
88539-47050 |
— | ||
|
88548B
|
88548B
88899-47090 Case, Air Filter[12.2016 -] NGX10,50 |
88899-47090 |
US $4.66 |
||
|
88625
|
88625
88620-28050 Sensor, Evaporator Temperature[12.2016 -] NGX10,50 |
88620-28050 |
from US $8.39 |
||
|
88650N
|
88650N
88650-10480
Amplifier Assy, Air Conditioner
[12.2016 -] NGX10,50..ACTV |
88650-10480 |
— | ||
|
88650N
|
88650N
88650-10500
Amplifier Assy, Air Conditioner
[12.2016 -] NGX10,50..LUX; NGX10,50..ACTV ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
88650-10500 |
— | ||
|
88897M
|
88897M
87128-28020
Grommet, Heater
[12.2016 -] NGX10,50 |
87128-28020 |
— | ||
|
88899L
|
88899L
88899-10120
Parts, Cooling Unit
[12.2016 -] NGX10,50 |
88899-10120 |
— | ||
|
88899M
|
88899M
88899-28620
Plate, Cover
[12.2016 -] NGX10,50 |
88899-28620 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
