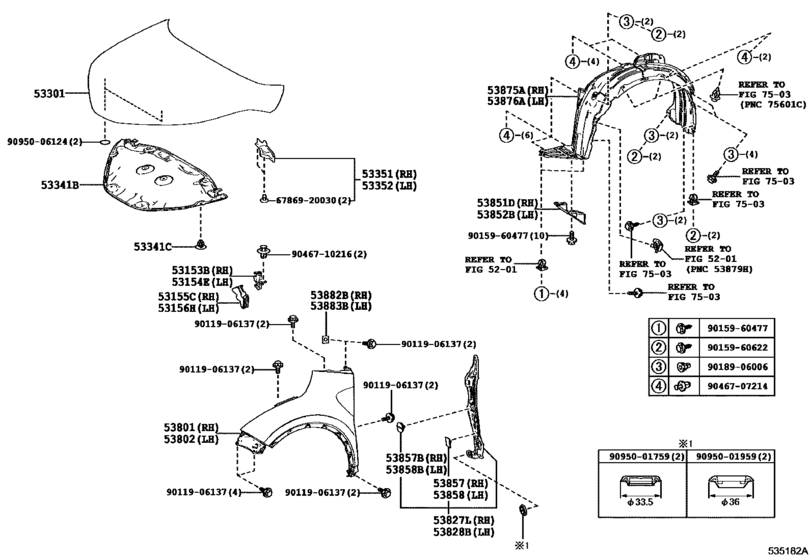

Hood & Front Fender ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153B
|
53153B
53153-10020 Guide, Front Side Air[12.2016 -] NGX10,50 |
53153-10020 |
US $23.18 |
||
|
53154E
|
53154E
53154-10010 Guide, Front Side Air, No.2[12.2016 -] NGX10,50 |
53154-10010 |
US $23.18 |
||
|
53155C
|
53155C
53155-10100 Seal, Radiator Grille, No.1[12.2016 -] NGX10,50 |
53155-10100 |
US $38.30 |
||
|
53156H
|
53156H
53156-10020 Seal, Radiator Grille, No.2[12.2016 -] NGX10,50 |
53156-10020 |
US $38.30 |
||
|
53301
|
53301
53301-10380 Hood Sub-Assy[12.2016 -] NGX10,50 |
53301-10380 |
US $652.08 |
||
|
53341B
|
53341B
53341-10060 Insulator, Hood[12.2016 -] NGX10,50 |
53341-10060 |
US $123 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[12.2016 -] NGX10,50 |
90467-09050 |
from US $0.86 |
||
|
53351
|
53351
53351-10010 Panel, Hood Side, Rh[12.2016 -] NGX10,50 |
53351-10010 |
US $8.24 |
||
|
53352
|
53352
53352-10010 Panel, Hood Side, Lh[12.2016 -] NGX10,50 |
53352-10010 |
US $8.24 |
||
|
53801
|
53801
53801-10600 Fender Sub-Assy, Front Rh[12.2016 -] NGX10,50 |
53801-10600 |
US $441.48 |
||
|
53802
|
53802
53802-10700 Fender Sub-Assy, Front Lh[12.2016 -] NGX10,50 |
53802-10700 |
US $441.48 |
||
|
53827L
|
53827L
53827-10040 Protector, Front Fender Side Panel, Rh[12.2016 -] NGX10,50 |
53827-10040 |
US $44.52 |
||
|
53828B
|
53828B
53828-10040 Protector, Front Fender Side Panel, Lh[12.2016 -] NGX10,50 |
53828-10040 |
US $44.52 |
||
|
53851D
|
53851D
53851-10030 Pad, Front Wheel Opening Extension, Rh[12.2016 -] NGX10,50 |
53851-10030 |
US $26.21 |
||
|
53852B
|
53852B
53852-10030
Pad, Front Wheel Opening Extension, Lh
[12.2016 -] NGX10,50 |
53852-10030 |
— | ||
| replacement | |||||
|
53852B
|
53852B
53852-10032 Front wheel opening extensions pad (L)[12.2016 -] NGX10,50 |
53852-10032 |
US $35.95 |
||
|
53857
|
53857
53857-12010 Retainer, Front Wheel Opening Extension, Rh[12.2016 -] NGX10,50 |
53857-12010 |
from US $1.29 |
||
|
53857B
|
53857B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [12.2016 -] NGX10,50 |
53857-47011 |
from US $0.74 |
||
|
53858
|
53858
53857-12010 Retainer, Front Wheel Opening Extension, Rh[12.2016 -] NGX10,50 |
53857-12010 |
from US $1.29 |
||
|
53858B
|
53858B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [12.2016 -] NGX10,50 |
53857-47011 |
from US $0.74 |
||
|
53875A
|
53875A
53875-10070 Liner, Front Fender, Rh[12.2016 -] NGX10,50 |
53875-10070 |
US $131.20 |
||
|
53876A
|
53876A
53876-10070 Liner, Front Fender, Lh[12.2016 -] NGX10,50 |
53876-10070 |
US $131.20 |
||
|
53882B
|
53882B
53882-16030 Pad, Rear Bumper, Center[12.2016 -] NGX10,50 |
53882-16030 |
from US $0.80 |
||
|
53883B
|
53883B
53882-16030 Pad, Rear Bumper, Center[12.2016 -] NGX10,50 |
53882-16030 |
from US $0.80 |
||
|
6786920030
|
6786920030
67869-20030 Clip, Door Weatherstrip(For Front Door) |
67869-20030 |
from US $1.29 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9015960622
|
9015960622
90159-60622
SCREW, W/WASHER TAPP
|
90159-60622 |
— | ||
| replacement | |||||
|
9015960622
|
9015960622
9015960623 Screw, W/washer Tapping |
9015960623 |
from US $0.49 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.07 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.09 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
US $2.15 |
||
|
9095006124
|
9095006124
90950-06124 Tape, Seal |
90950-06124 |
from US $1.54 |
||
