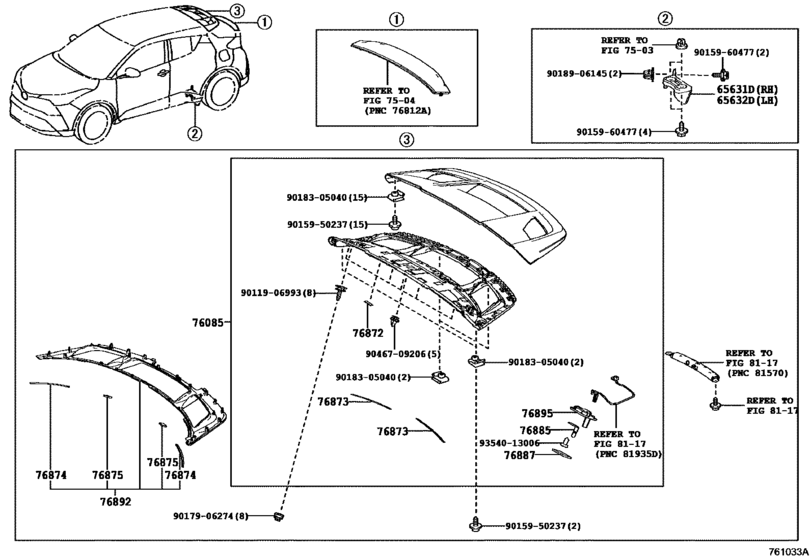

Mudguard & Spoiler ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65631D
|
65631D
65631-10010 Plate, Rear Wheel House, Front Rh[12.2016 -] NGX10,50 |
65631-10010 |
US $13.62 |
||
|
65632D
|
65632D
65632-10010 Plate, Rear Wheel House, Front Lh[12.2016 -] NGX10,50 |
65632-10010 |
US $13.62 |
||
|
76085
|
76085
76085-10902-A0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 WHITE PEARL CS.,070 |
76085-10902-A0 |
US $880.64 |
||
|
76085
|
76085
76085-10902-B0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 MEYAL STREAM ME.,1K0 |
76085-10902-B0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-C0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 BLACK MC.,209 |
76085-10902-C0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-D0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 RED MC.,3T3 |
76085-10902-D0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-E0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 DK. BROWN M.M.,4U3 |
76085-10902-E0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-F0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 YELLOW,5A3 |
76085-10902-F0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-G0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 RADIANT GREEN ME.,6W9 |
76085-10902-G0 |
US $845.94 |
||
|
76085
|
76085
76085-10902-J0 Spoiler Sub-Assy, Rear[12.2016 -] NGX10,50 BLUE ME.,8T7 |
76085-10902-J0 |
US $845.94 |
||
|
76872
|
76872
76872-10050 Protector, Rear Spoiler, No.1[12.2016 -] NGX10,50 |
76872-10050 |
US $7.71 |
||
|
76873
|
76873
76873-10070 Protector, Rear Spoiler, No.2[12.2016 -] NGX10,50 |
76873-10070 |
US $8.42 |
||
|
76874
|
76874
76874-10060 Protector, Rear Spoiler, No.3[12.2016 -] NGX10,50 |
76874-10060 |
US $8.42 |
||
|
76875
|
76875
76875-10040 Protector, Rear Spoiler, No.4[12.2016 -] NGX10,50 |
76875-10040 |
US $8.42 |
||
|
76885
|
76885
76885-10010 Retainer, Rear Spoiler, No.5[12.2016 -] NGX10,50 |
76885-10010 |
US $1.24 |
||
|
76887
|
76887
76887-10050 Seal, Rear Spoiler[12.2016 -] NGX10,50 |
76887-10050 |
US $8.42 |
||
|
76892
|
76892
76892-10010 Spoiler, Rear No.2[12.2016 -] NGX10,50 |
76892-10010 |
US $123 |
||
|
76895
|
76895
76895-10010 Protector, Rear Spoiler, No.5[12.2016 -] NGX10,50 |
76895-10010 |
US $26.04 |
||
|
9011906993
|
9011906993
90119-06993 BOLT WWASHER |
90119-06993 |
US $1.43 |
||
|
9015950237
|
9015950237
90159-50237 New Genuine Part |
90159-50237 |
US $1.61 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018305040
|
9018305040
90183-05040 NUT SPRING |
90183-05040 |
from US $0.78 |
||
|
9018906145
|
9018906145
90189-06145 GROMMET SCREW |
90189-06145 |
from US $0.86 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.47 |
||
|
9354013006
|
9354013006
93540-13006 New Genuine Part |
93540-13006 |
US $2.48 |
