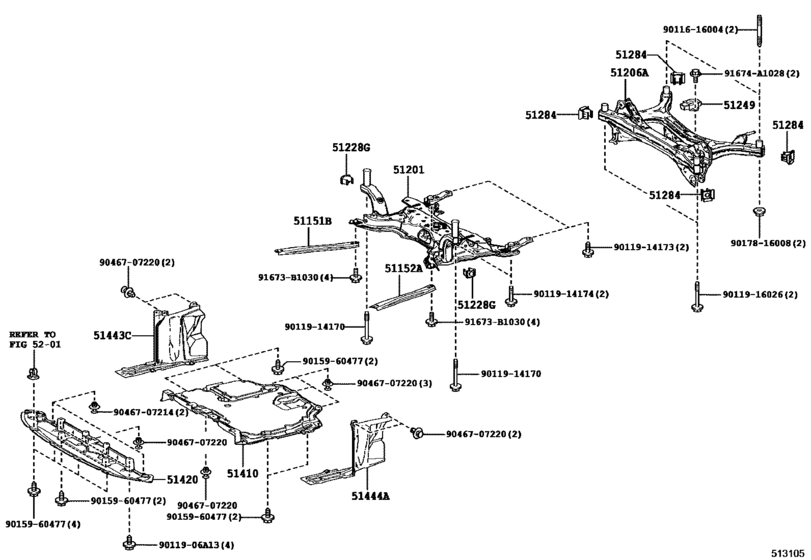

Suspension Crossmember & Under Cover ([12.2016 - ] (1612- )NGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- ACTV
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51151B
|
51151B
51151-10010 Reinforcement, Side Rail, No.1 Rh[12.2016 -] NGX10,50 |
51151-10010 |
from US $44.52 |
||
|
51152A
|
51152A
51151-10010 Reinforcement, Side Rail, No.1 Rh[12.2016 -] NGX10,50 |
51151-10010 |
from US $44.52 |
||
|
51201
|
51201
51201-10120 Crossmember Sub-Assy, Front Suspension[12.2016 -] NGX10,50 |
51201-10120 |
US $765.86 |
||
|
51206A
|
51206A
51206-10010 Member Sub-Assy, Rear Suspension[12.2016 - 02.2017] NGX10 |
51206-10010 |
US $725.09 |
||
|
51206A
|
51206A
51206-10011 Member Sub-Assy, Rear Suspension[03.2017 -] NGX10 |
51206-10011 |
US $823.68 |
||
|
51228G
|
51228G
51228-47010 Plate, Suspension Member Set[12.2016 -] NGX10,50 |
51228-47010 |
US $3.94 |
||
|
51249
|
51249
51249-10010 Damper, Rear Suspension Member[12.2016 -] NGX10 |
51249-10010 |
US $52.62 |
||
|
51284
|
51284
51284-47010 Cover, Rear Suspension Member Hole[12.2016 -] NGX10,50 |
51284-47010 |
US $6.09 |
||
|
51410
|
51410
51410-10010 Cover Assy, Engine Under, No.1[12.2016 -] NGX10 |
51410-10010 |
US $312 |
||
|
51420
|
51420
51420-10010 Cover Assy, Engine Under, No.2[12.2016 -] NGX10,50 |
51420-10010 |
US $109.88 |
||
|
51443C
|
51443C
51443-10020 Cover, Engine Under, Rear Rh[12.2016 -] NGX10,50 |
51443-10020 |
from US $36.68 |
||
|
51444A
|
51444A
51444-10020 Cover, Engine Under, Rear Lh[12.2016 -] NGX10,50 |
51444-10020 |
from US $36.68 |
||
|
91673B1030
|
91673B1030
91673-B1030 BOLT, FLANGE W/WASHE |
91673-B1030 |
from US $1.11 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.35 |
||
|
9011906A13
|
9011906A13
90119-06A13 UNDER COVER BOLT |
90119-06A13 |
from US $0.53 |
||
|
9011616004
|
9011616004
90116-16004 BOLT STUD |
90116-16004 |
US $10.93 |
||
|
9011914170
|
9011914170
90119-14170 New Genuine Part |
90119-14170 |
US $8.78 |
||
|
9011914173
|
9011914173
90119-14173 New Genuine Part |
90119-14173 |
US $5.56 |
||
|
9011914174
|
9011914174
90119-14174 New Genuine Part |
90119-14174 |
US $6.45 |
||
|
9011916026
|
9011916026
90119-16026 BOLT WWASHER |
90119-16026 |
US $10.93 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9017816008
|
9017816008
90178-16008 NUT FLANGE |
90178-16008 |
US $3.40 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046707220
|
9046707220
90467-07220 Clip |
90467-07220 |
from US $0.80 |
