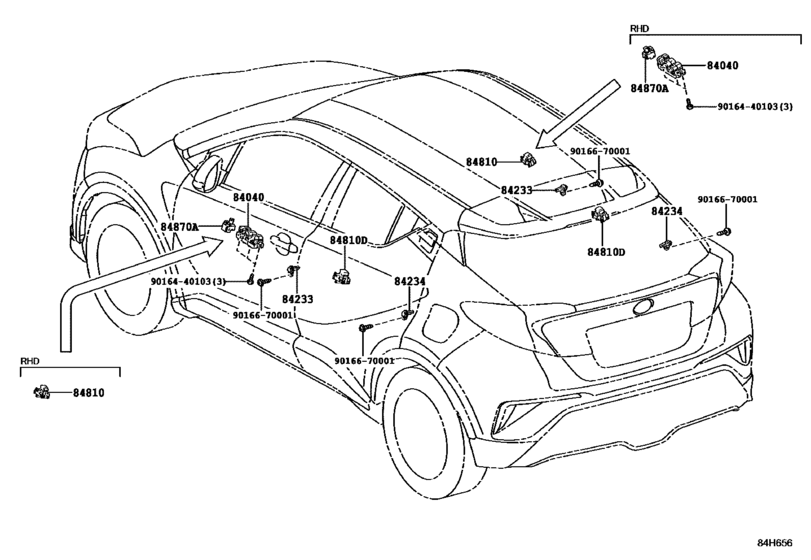

Switch & Relay & Computer ([10.2016 - ] DOOR & ROOF (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- ENGINE
- 8NRFTS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-F4030
Master Switch Assy,multiplex Network
[10.2016 -] NGX10,50..RHD |
84040-F4030 |
— | ||
|
84233
|
84233
84231-0D030
Switch Assy, Courtesy Lamp (For Front Door)
[10.2016 -] NGX10,50 |
84231-0D030 |
— | ||
|
84234
|
84234
84231-0D030
Switch Assy, Courtesy Lamp (For Front Door)
[10.2016 -] NGX10,50 |
84231-0D030 |
— | ||
|
84810
|
84810
84810-F4030
Switch Assy, Power Window Regulator
[10.2016 -] NGX10,50 |
84810-F4030 |
— | ||
|
84810D
|
84810D
84810-F4030
Switch Assy, Power Window Regulator
[10.2016 -] NGX10,50 |
84810-F4030 |
— | ||
|
84870A
|
84870A
84872-F4030
Switch Assy, Outer Mirror
[10.2016 -] NGX10,50..RHD..E |
84872-F4030 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
