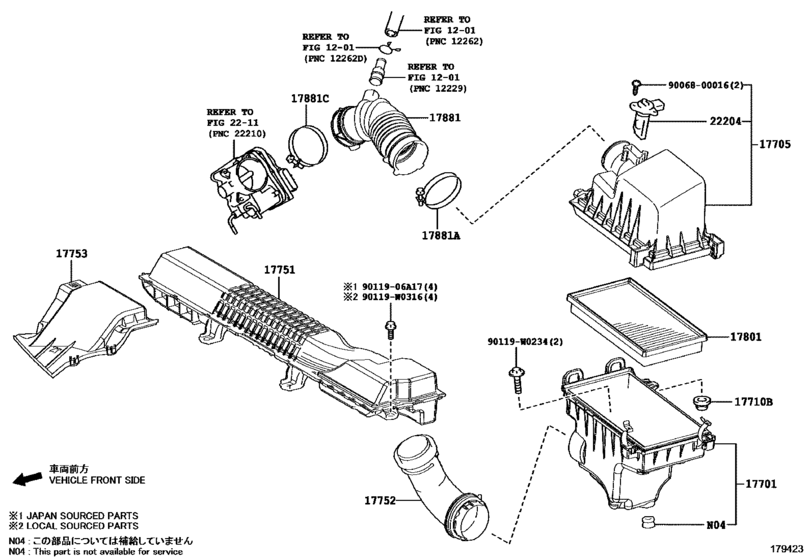

Air Cleaner ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17701
|
17701
17701-0T180
Case Sub-Assy, Air Cleaner
[10.2016 -] 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
17701-0T180 |
— | ||
|
17705
|
17705
17705-0T220 Cap Sub-Assy, Air Cleaner[10.2016 -] 3ZRFAE..ZGX10 |
17705-0T220 |
US $222.55 |
||
|
17710B
|
17710B
90480-18006 Grommet(For Ventilation System)[10.2016 -] 8NRFTS..NGX10,50; 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
90480-18006 |
from US $2.32 |
||
|
17751
|
17751
17751-0T200 Inlet, Air Cleaner, No.1[10.2016 -] 3ZRFAE..ZGX10 |
17751-0T200 |
US $81.61 |
||
|
17752
|
17752
17752-0T070
Inlet, Air Cleaner, No.2
[10.2016 -] 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
17752-0T070 |
— | ||
|
17753
|
17753
17753-0T020
Inlet, Air Cleaner, No.3
[10.2016 -] 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
17753-0T020 |
— | ||
|
17801
|
17801
17801-0T060 Element Sub-Assy, Air Cleaner Filter[10.2016 -] 3ZRFAE..ZGX10 (L); 8NRFTS..NGX10,50 (L) |
17801-0T060 |
US $49 |
||
|
17801
|
17801
17801-77050 Element Sub-Assy, Air Cleaner Filter[10.2016 -] 3ZRFAE..ZGX10 (J); 8NRFTS..NGX10,50 (J) |
17801-77050 |
from US $45.36 |
||
|
17881
|
17881
17881-0T450
Hose, Air Cleaner, No.1
[10.2016 -] 3ZRFAE..ZGX10 |
17881-0T450 |
— | ||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[10.2016 -] 3ZRFAE..ZGX10 |
96111-10780 |
from US $3.53 |
||
|
17881C
|
17881C
96111-10750 Clamp, Hose(For Air Cleaner Duct)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96111-10750 |
from US $3.40 |
||
|
22204
|
22204
22204-75040 Meter Sub-Assy, Intake Air Flow[10.2016 -] 3ZRFAE..ZGX10 |
22204-75040 |
from US $135.39 |
||
|
90119W0234
|
90119W0234
90119-W0234
New Genuine Part
|
90119-W0234 |
— | ||
|
9011906A17
|
9011906A17
90119-06A17 BOLT WWASHER |
90119-06A17 |
US $1.08 |
||
|
9006800016
|
9006800016
90068-00016 New Genuine Part |
90068-00016 |
US $0.73 |
