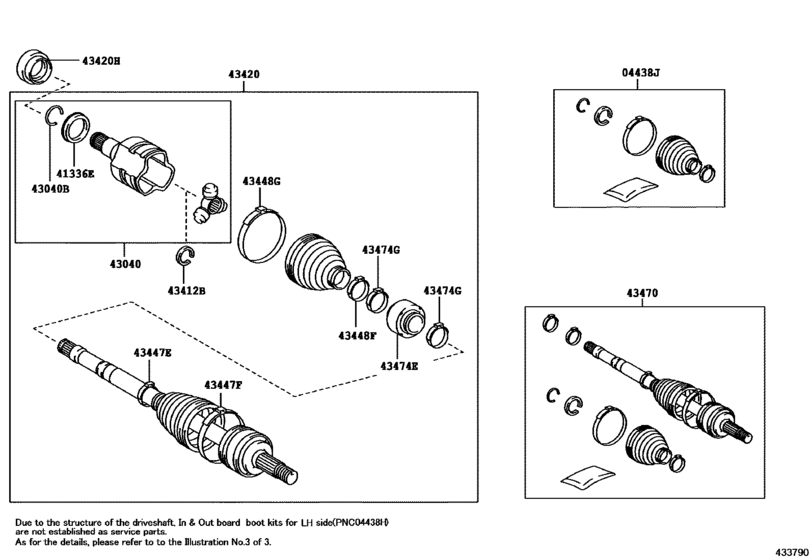

Front Drive Shaft ([10.2016 - ] LH (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438J
|
04438J
04438-F4010
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[10.2016 -] ZGX10,ZYX10 |
04438-F4010 |
— | ||
|
41336E
|
41336E
41336-05130
Cover, Front Drive Shaft Dust, Lh
[10.2016 -] ZGX10,ZYX10 |
41336-05130 |
— | ||
|
43040
|
43040
43040-05142
Joint Assy, Front Drive Inboard, Lh
[10.2016 -] ZGX10,ZYX10 |
43040-05142 |
— | ||
|
43040B
|
43040B
43425-05070
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[10.2016 -] ZGX10,ZYX10 |
43425-05070 |
— | ||
|
43412B
|
43412B
43425-05040
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
43425-05040 |
— | ||
|
43420
|
43420
43420-F4030
Shaft Assy, Front Drive, Lh
[10.2016 -] ZGX10 |
43420-F4030 |
— | ||
|
43420H
|
43420H
90311-50050 Oil Seal, Front Drive Shaft, Lh[10.2016 -] ZGX10 |
90311-50050 |
from US $6.27 |
||
|
43447E
|
43447E
42345-02820
Clamp (For Front Axle Outboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-02820 |
— | ||
|
43447F
|
43447F
42345-02810
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-02810 |
— | ||
|
43448F
|
43448F
42345-0F070
Clamp (For Front Axle Inboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-0F070 |
— | ||
|
43448G
|
43448G
42345-F4020
Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-F4020 |
— | ||
|
43470
|
43470
43470-F9030
Shaft Assy, Front Drive Outboard Joint, Rh
[10.2016 -] ZGX10 |
43470-F9030 |
— | ||
|
43474E
|
43474E
43474-F4030
Damper, Front Drive Shaft, Lh
[10.2016 -] ZGX10 |
43474-F4030 |
— | ||
|
43474G
|
43474G
42345-F4030
Clamp (For Front Drive Shaft Damper Lh)
[10.2016 -] ZGX10 |
42345-F4030 |
— |
