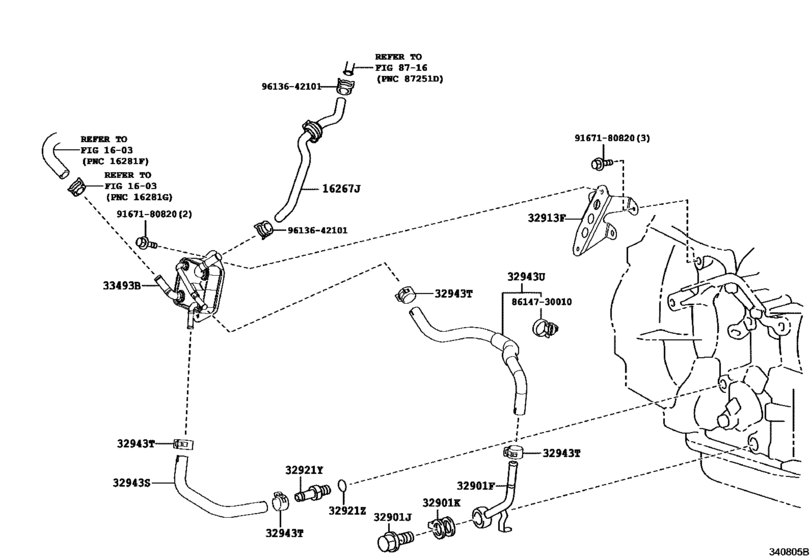

Oil Cooler & Tube(Cvt) ([10.2016 - ] K114 (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16267J
|
16267J
16267-0T180
Hose, Water By-Pass, No.3
[10.2016 -] 3ZRFAE..ZGX10 |
16267-0T180 |
— | ||
|
32901F
|
32901F
32901-28010 Elbow Sub-Assy, Oil Cooler[10.2016 -] ZGX10 |
32901-28010 |
US $12.90 |
||
|
32901J
|
32901J
90401-14003 Bolt, Union(For Oil Cooler)[10.2016 -] ZGX10 |
90401-14003 |
US $6.63 |
||
|
32901K
|
32901K
90430-14012 Gasket(For Oil Cooler Union)[10.2016 -] ZGX10 |
90430-14012 |
US $1.43 |
||
|
32913F
|
32913F
32913-F4010
Bracket, Transmission Oil Cooler
[10.2016 -] ZGX10 |
32913-F4010 |
— | ||
|
32921Y
|
32921Y
90404-13009 Union(For Oil Cooler Tube)[10.2016 -] ZGX10 |
90404-13009 |
US $5.56 |
||
|
32921Z
|
32921Z
90301-10018 Ring, O(For Oil Cooler Tube Union)[10.2016 -] ZGX10 |
90301-10018 |
from US $2.13 |
||
|
32943S
|
32943S
32943-10010
Hose, Transmission Oil Cooler, No.1
[10.2016 -] ZGX10 |
32943-10010 |
— | ||
|
32943T
|
32943T
90466-16004 Clip(For Ventilation Hose No.2)[10.2016 -] ZGX10 |
90466-16004 |
from US $1.85 |
||
|
32943U
|
32943U
32943-10020
Hose, Transmission Oil Cooler, No.2
[10.2016 -] ZGX10 |
32943-10020 |
— | ||
|
33493B
|
33493B
33493-F4010
Cooler, Oil
[10.2016 -] ZGX10 |
33493-F4010 |
— | ||
|
8614730010
|
8614730010
86147-30010
New Genuine Part
|
86147-30010 |
— | ||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
|
9613642101
|
9613642101
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy) |
96136-42101 |
from US $2.93 |
