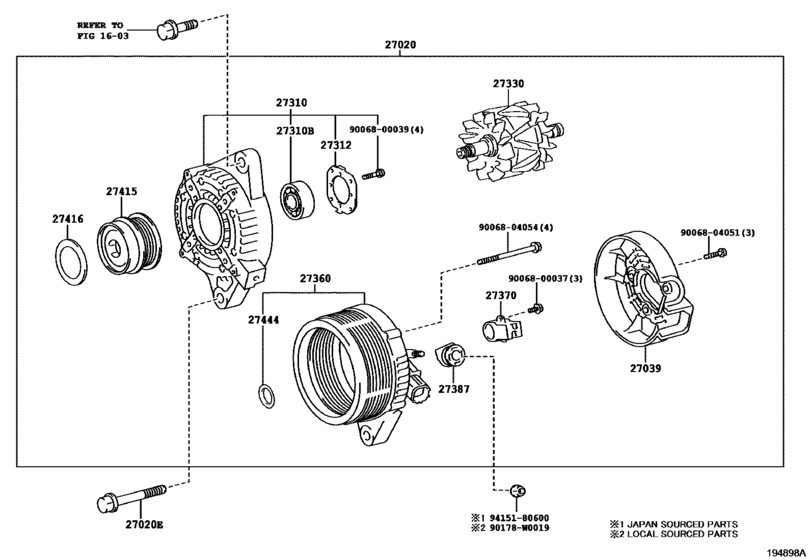

Alternator ([10.2016 - ] 12V 130A (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0T370
Alternator Assy
[10.2016 -] 3ZRFAE..ZGX10 12V 130A |
27060-0T370 |
— | ||
|
27020E
|
27020E
90105-10307 Bolt(For Alternator)[10.2016 -] 3ZRFAE..ZGX10 |
90105-10307 |
US $20.16 |
||
|
27039
|
27039
27039-0Y150 Cover, Alternator Rear End[10.2016 -] 3ZRFAE..ZGX10 |
27039-0Y150 |
US $10.19 |
||
|
27310
|
27310
27310-0T350
Frame Assy, Drive End, Alternator
[10.2016 -] 3ZRFAE..ZGX10 |
27310-0T350 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[10.2016 -] 3ZRFAE..ZGX10 |
90068-10033 |
— | ||
|
27312
|
27312
27312-0T300
Plate, Retainer
[10.2016 -] 3ZRFAE..ZGX10 |
27312-0T300 |
— | ||
|
27330
|
27330
27330-0T350
Rotor Assy, Alternator
[10.2016 -] 3ZRFAE..ZGX10 |
27330-0T350 |
— | ||
|
27360
|
27360
27360-0T350
Coil Assy, Alternator
[10.2016 -] 3ZRFAE..ZGX10 |
27360-0T350 |
— | ||
|
27370
|
27370
27370-0Y150
Holder Assy, Alternator Brush
[10.2016 -] 3ZRFAE..ZGX10 |
27370-0Y150 |
— | ||
|
27387
|
27387
27387-0Y150 Insulator, Terminal[10.2016 -] 3ZRFAE..ZGX10 |
27387-0Y150 |
US $5.24 |
||
|
27415
|
27415
27415-0T060 Pulley, Alternator W/clutch[10.2016 -] 3ZRFAE..ZGX10 |
27415-0T060 |
from US $61.09 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[10.2016 -] 3ZRFAE..ZGX10 |
27416-0W050 |
from US $3.84 |
||
|
27444
|
27444
27444-0T300
Packing, Alternator Bearing Cover
[10.2016 -] 3ZRFAE..ZGX10 |
27444-0T300 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9006800037
|
9006800037
90068-00037
Screw(For Alternator Brush Holder)
|
90068-00037 |
— | ||
|
9006800039
|
9006800039
90068-00039
Screw(For Alternator Drive End Frame)
|
90068-00039 |
— | ||
|
9006804051
|
9006804051
90068-04051
Bolt(For Alternator Rear End Cover)
|
90068-04051 |
— | ||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
