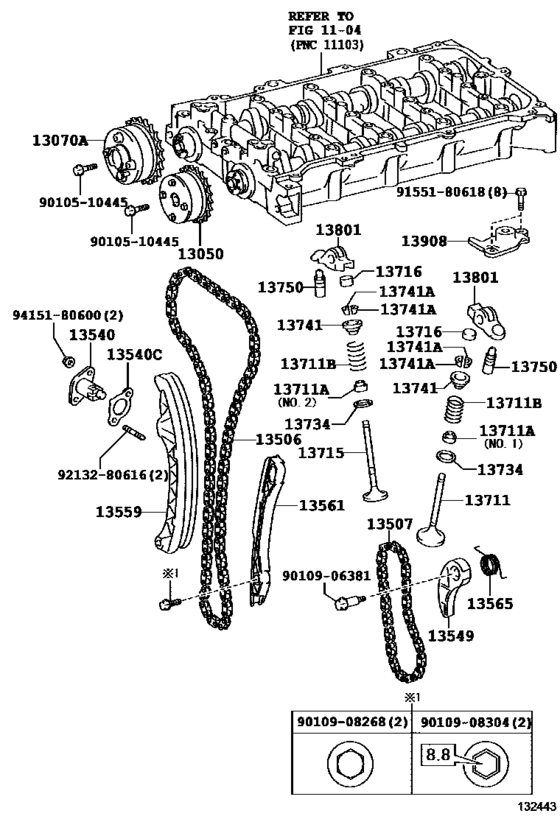

Camshaft & Valve ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-37050 Gear Assy, Camshaft Timing[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
13050-37050 |
from US $158.57 |
||
|
13070A
|
13070A
13070-37020 Gear Assy, Camshaft Timing Exhaust[10.2016 -] 3ZRFAE..ZGX10 |
13070-37020 |
from US $203.21 |
||
|
13506
|
13506
13506-37060 Chain Sub-Assy[10.2016 -] 3ZRFAE..ZGX10 |
13506-37060 |
from US $104.60 |
||
|
13507
|
13507
13507-28010 Chain Sub-Assy, No.2[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
13507-28010 |
from US $29.58 |
||
|
13540
|
13540
13540-37030 Tensioner Assy, Chain, No.1[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
13540-37030 |
from US $24.02 |
||
|
13540C
|
13540C
13552-37010 Gasket(For Chain Tensioner)[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
13552-37010 |
from US $2.61 |
||
|
13549
|
13549
13549-37020 Plate, Chain Tensioner[10.2016 -] 2ZRFXE..ZYX10 NO MARK; 3ZRFAE..ZGX10 |
13549-37020 |
from US $7.64 |
||
|
13559
|
13559
13559-37030 Slipper, Chain Tensioner[10.2016 -] 3ZRFAE..ZGX10 |
13559-37030 |
US $46.54 |
||
|
13561
|
13561
13561-37040 Damper, Chain Vibration, No.1[10.2016 -] 3ZRFAE..ZGX10 |
13561-37040 |
US $17.47 |
||
|
13565
|
13565
13565-37010 Spring, Chain Damper[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
13565-37010 |
from US $2.16 |
||
|
13711
|
13711
13711-37020 Valve, Intake[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
13711-37020 |
from US $14.10 |
||
|
13711A
|
13711A
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [10.2016 -] 2ZRFXE..ZYX10 (J),NO.1; 3ZRFAE..ZGX10 NO.1 |
90913-02101 |
from US $4.84 |
||
|
13711A
|
13711A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[10.2016 -] 2ZRFXE..ZYX10 (J),NO.2; 3ZRFAE..ZGX10 NO.2 |
90913-02112 |
from US $4.84 |
||
|
13711B
|
13711B
90501-32072 Spring, Compression(For Inner)[10.2016 -] 3ZRFAE..ZGX10 L=51.88 |
90501-32072 |
from US $2.91 |
||
|
13715
|
13715
13715-37030 Valve, Exhaust[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
13715-37030 |
from US $20.16 |
||
|
13716
|
13716
13716-75020 Cap, Valve Stem[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
13716-75020 |
from US $0.64 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
13734-62020 |
from US $0.57 |
||
|
13741
|
13741
13741-36010 Retainer, Valve Spring[10.2016 -] 8NRFTS..NGX10,50; 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
13741-36010 |
from US $1.15 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
90913-03028 |
from US $0.99 |
||
|
13750
|
13750
13750-21010 Adjuster Assy, Valve Lash[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
13750-21010 |
from US $15.23 |
||
|
13801
|
13801
13801-36020 Arm Sub-Assy, Valve Rocker, No.1[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10; 8NRFTS..NGX10,50 |
13801-36020 |
from US $29.58 |
||
|
13908
|
13908
13908-37012 Damper Sub-Assy, Valve Rocker Arm Lost Motion[10.2016 -] 3ZRFAE..ZGX10 |
13908-37012 |
US $14.27 |
||
|
9010510445
|
9010510445
90105-10445 BOLT WASHER BASED |
90105-10445 |
from US $1.13 |
||
|
9010906381
|
9010906381
90109-06381 BOLT |
90109-06381 |
from US $0.82 |
||
|
9010908268
|
9010908268
90109-08268 BOLT |
90109-08268 |
US $2.87 |
||
|
9010908304
|
9010908304
90109-08304 BOLT |
90109-08304 |
from US $1.29 |
||
|
9155180618
|
9155180618
91551-80618 Bolt, W/washer(For Repair Actuator Set) |
91551-80618 |
US $1.08 |
||
|
9213280616
|
9213280616
92132-80616 BOLTSTUD |
92132-80616 |
US $1.43 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
