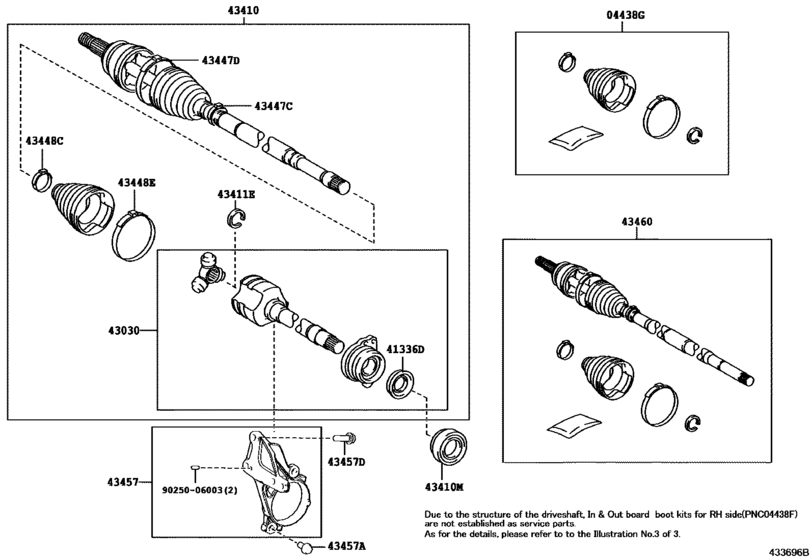

Front Drive Shaft ([10.2016 - ] RH (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04438-F4010
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[10.2016 -] NGX50,ZGX10 |
04438-F4010 |
— | ||
|
41336D
|
41336D
41336-05100
Cover, Front Drive Shaft Dust, Rh
[10.2016 -] ZGX10,ZYX10 |
41336-05100 |
— | ||
|
43030
|
43030
43030-F4010
Joint Assy, Front Drive Inboard, Rh
[10.2016 -] ZGX10 |
43030-F4010 |
— | ||
|
43410
|
43410
43410-F4030
Shaft Assy, Front Drive, Rh
[10.2016 -] ZGX10 |
43410-F4030 |
— | ||
|
43410M
|
43410M
90311-40041 Oil Seal, Front Drive Shaft, Rh[10.2016 -] ZGX10 |
90311-40041 |
from US $5.56 |
||
|
43411E
|
43411E
43425-05040
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[10.2016 -] NGX50,ZGX10 |
43425-05040 |
— | ||
|
43447C
|
43447C
42345-02820
Clamp (For Front Axle Outboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-02820 |
— | ||
|
43447D
|
43447D
42345-02810
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
42345-02810 |
— | ||
|
43448C
|
43448C
42345-0F070
Clamp (For Front Axle Inboard Joint Boot Rh)
[10.2016 -] NGX50,ZGX10 |
42345-0F070 |
— | ||
|
43448E
|
43448E
42345-F4020
Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
[10.2016 -] NGX50,ZGX10 |
42345-F4020 |
— | ||
|
43457
|
43457
43457-10030
Bracket, Drive Shaft Bearing
[10.2016 -] ZGX10 |
43457-10030 |
— | ||
|
43457A
|
43457A
90105-W0214 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[10.2016 -] ZGX10 *10-1.25PX22-19.5 |
90105-W0214 |
US $1.31 |
||
|
43457D
|
43457D
90105-W0215
Bolt(For Drive Shaft Bearring Bracket Setting No.2)
[10.2016 -] NGX50,ZGX10 |
90105-W0215 |
— | ||
|
43460
|
43460
43470-F9030
Shaft Assy, Front Drive Outboard Joint, Rh
[10.2016 -] ZGX10 |
43470-F9030 |
— | ||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
