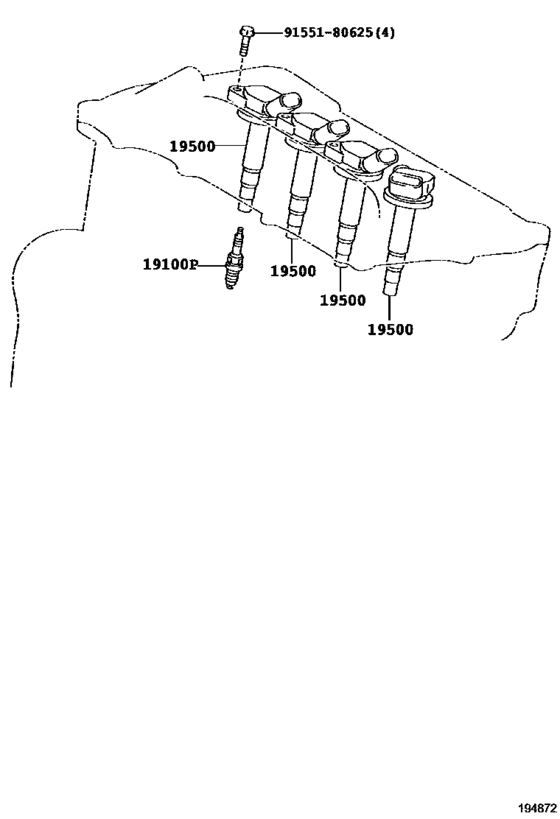

Ignition Coil & Spark Plug ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[10.2016 -] 3ZRFAE..ZGX10 SC16HR11 |
90919-01275 |
from US $22.29 |
||
|
19500
|
19500
90919-02258 Coil Assy, Ignition[10.2016 -] 3ZRFAE..ZGX10 |
90919-02258 |
from US $89.10 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
