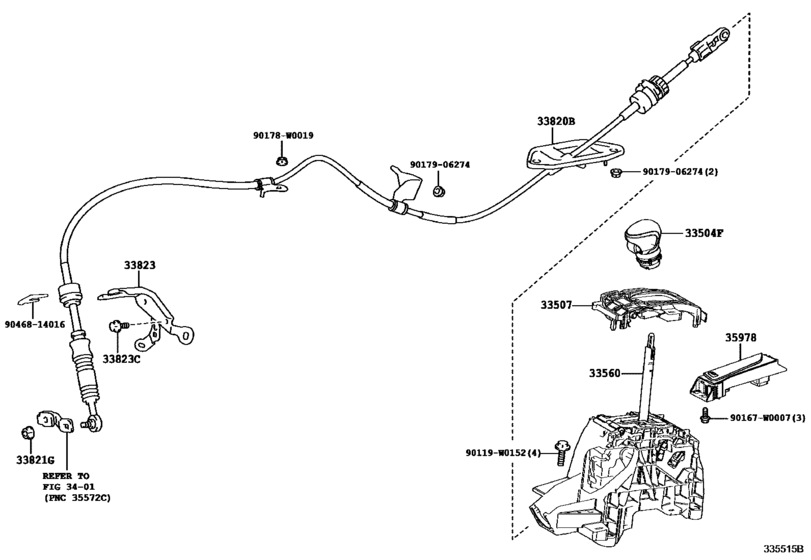

Shift Lever & Retainer ([10.2016 - ] (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-10070-C2 Knob Sub-Assy, Shift Lever[10.2016 -] NGX10,50,ZGX10,ZYX10..CVT BLACK,TRIM2# |
33504-10070-C2 |
US $52.12 |
||
|
33507
|
33507
33507-F4010
Bracket Sub-Assy, Shift Lever Housing
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD..CVT |
33507-F4010 |
— | ||
|
33560
|
33560
33560-F4030
Unit Assy, Shift Lock Control
[10.2016 -] NGX10,50,ZGX10..LHD..CVT..E; NGX10,50,ZGX10..LHD..CVT..(G,N) WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
33560-F4030 |
— | ||
|
33820B
|
33820B
33820-F4030
Cable Assy, Transmission Control
[10.2016 -] ZGX10 |
33820-F4030 |
— | ||
|
33821G
|
33821G
90178-W0031
Nut (For Transmission Control Cable)
[10.2016 -] NGX10,50,ZGX10,ZYX10..CVT |
90178-W0031 |
— | ||
|
33823
|
33823
33823-28300 Bracket, Transmission Control Cable, No.1[10.2016 -] ZGX10 |
33823-28300 |
US $12.67 |
||
|
33823C
|
33823C
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)[10.2016 -] NGX10,50,ZGX10,ZYX10..CVT (J) |
90119-08079 |
from US $0.64 |
||
|
33823C
|
33823C
90119-W0016
Bolt (For Transmission Control Cable Bracket)
[10.2016 -] NGX10,50,ZGX10,ZYX10..CVT (L) |
90119-W0016 |
— | ||
| replacement | |||||
|
33823C
|
33823C
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)[10.2016 -] NGX10,50,ZGX10,ZYX10..CVT (L) |
90119-08079 |
from US $0.64 |
||
|
35978
|
35978
35978-F4010
Indicator, Shift Position
[10.2016 -] NGX10,50,ZGX10..LHD..CVT |
35978-F4010 |
— | ||
|
90119W0152
|
90119W0152
90119-W0152
New Genuine Part
|
90119-W0152 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
