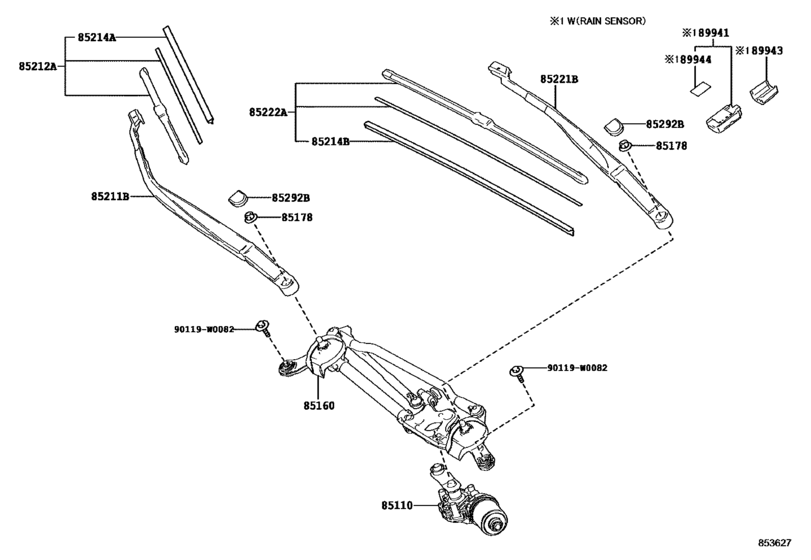

Windshield Wiper ([10.2016 - ] (1610- )LHD) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-F4010
Motor Assy, Windshield Wiper
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85110-F4010 |
— | ||
|
85160
|
85160
85150-F4010
Link Assy, Windshield Wiper
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85150-F4010 |
— | ||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[10.2016 -] NGX10,50,ZGX10,ZYX10 |
90182-10006 |
US $1.43 |
||
|
85211B
|
85211B
85211-F4010
Arm, Front Wiper, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85211-F4010 |
— | ||
|
85212A
|
85212A
85212-F4010
Blade, Fr Wiper, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85212-F4010 |
— | ||
|
85214A
|
85214A
85214-F4010
Rubber, Wiper, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85214-F4010 |
— | ||
|
85214B
|
85214B
85214-F4020
Rubber, Wiper, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85214-F4020 |
— | ||
|
85221B
|
85221B
85221-F4010
Arm, Front Wiper, Lh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85221-F4010 |
— | ||
|
85222A
|
85222A
85222-F4010
Blade, Fr Wiper, Lh
[10.2016 -] NGX10,50,ZGX10,ZYX10..LHD |
85222-F4010 |
— | ||
|
85292B
|
85292B
85292-0F010 Cap, Front Wiper Arm HeadFRONT WIPER ARM HEAD [10.2016 -] NGX10,50,ZGX10,ZYX10 |
85292-0F010 |
from US $2.36 |
||
|
89941
|
89941
89941-F4010
Sensor, Rain
[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N |
89941-F4010 |
— | ||
|
89943
|
89943
89943-F4011
Cover, Rain Sensor
[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N |
89943-F4011 |
— | ||
|
89944
|
89944
89944-F4010
Tape, Rain Sensor
[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N |
89944-F4010 |
— | ||
|
90119W0082
|
90119W0082
90119-W0082 New Genuine Part |
90119-W0082 |
US $1.02 |
