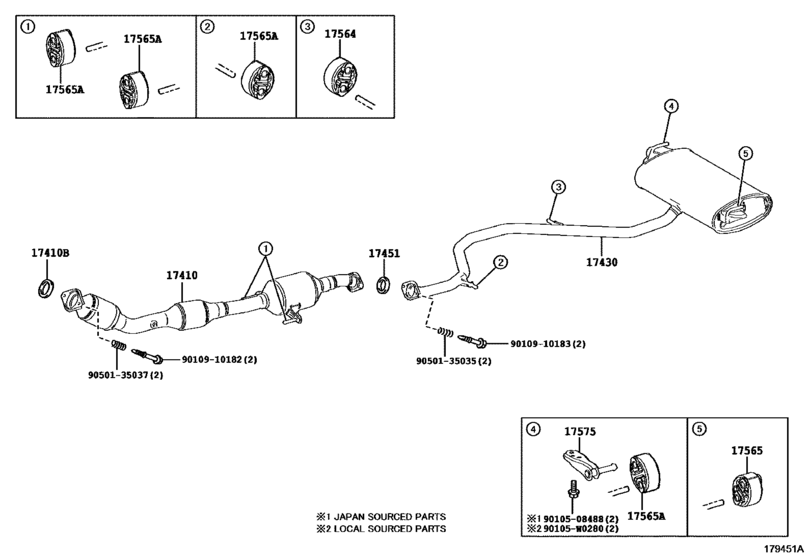

Exhaust Pipe ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-0TB20
Pipe Assy, Exhaust, Front
[10.2016 -] 3ZRFAE..ZGX10 |
17410-0TB20 |
— | ||
|
17410B
|
17410B
17451-0R010 Gasket, Exhaust PipeEXHAUST PIPE [10.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10 |
17451-0R010 |
from US $20.98 |
||
|
17430
|
17430
17430-0Y150
Pipe Assy, Exhaust, Tail
[10.2016 - 11.2016] 8NRFTS,3ZRFAE..NGX10,ZGX10 |
17430-0Y150 |
— | ||
|
17430
|
17430
17430-0Y151
Pipe Assy, Exhaust, Tail
[11.2016 -] 8NRFTS,3ZRFAE..NGX10,ZGX10 |
17430-0Y151 |
— | ||
|
17451
|
17451
17451-0J022
Gasket, Exhaust Pipe
[10.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10 |
17451-0J022 |
— | ||
|
17564
|
17564
17565-0T040
Support,exhaust Pipe, No.4
[10.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10 |
17565-0T040 |
— | ||
|
17565
|
17565
17565-0J031 Support, Exhaust Pipe, No.3EXHAUST PIPE, NO.4 [12.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 |
17565-0J031 |
from US $9.17 |
||
|
17565
|
17565
17566-0T020
Support, Exhaust Pipe, No.5
[10.2016 - 12.2016] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 |
17566-0T020 |
— | ||
|
17565A
|
17565A
17565-0J031 Support, Exhaust Pipe, No.3EXHAUST PIPE, NO.4 [10.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10 |
17565-0J031 |
from US $9.17 |
||
|
17575
|
17575
17575-0Y030
Bracket, Exhaust Pipe Support, No.5
[10.2016 -] 8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 |
17575-0Y030 |
— | ||
|
9010508488
|
9010508488
90105-08488 New Genuine Part |
90105-08488 |
US $1.43 |
||
|
9010910182
|
9010910182
90109-10182 BOLT |
90109-10182 |
US $3.40 |
||
|
9010910183
|
9010910183
90109-10183 BOLT |
90109-10183 |
US $3.40 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.41 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.33 |
