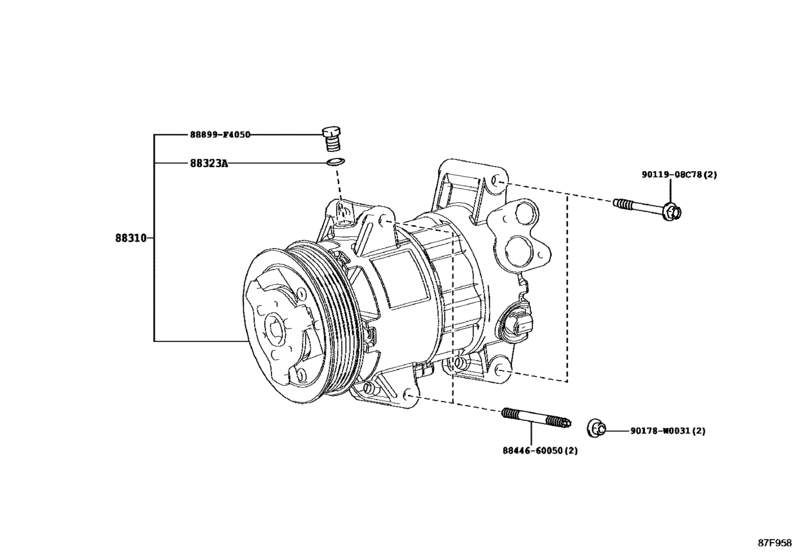

Heating & Air Conditioning - Compressor ([10.2016 - ] (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-F4010
Compressor Assy, W/pulley
[10.2016 - 12.2016] NGX10,50,ZGX10; NGX10..6F..N..EUR LIGHT GRADE |
88310-F4010 |
— | ||
|
88310
|
88310
88310-F4050
Compressor Assy, W/pulley
[12.2016 -] NGX10,50,ZGX10; NGX10..6F..N..EUR LIGHT GRADE |
88310-F4050 |
— | ||
|
88323A
|
88323A
88899-F4060
Gasket, Compressor
[10.2016 -] NGX10,50,ZGX10; NGX10..6F..N..EUR LIGHT GRADE |
88899-F4060 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
US $2.10 |
||
|
8844660050
|
8844660050
88446-60050 Bolt, Idle Pulley |
88446-60050 |
US $12.34 |
