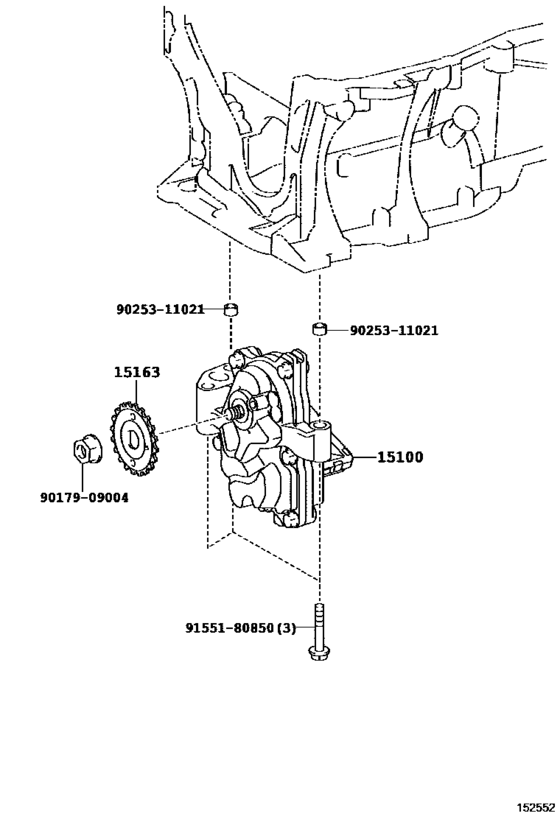

Engine Oil Pump ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-37021 Pump Assy, Oil[10.2016 -] 3ZRFAE..ZGX10 |
15100-37021 |
from US $80.44 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[10.2016 -] 2ZRFXE..ZYX10 (J); 3ZRFAE..ZGX10 |
15163-28010 |
from US $3.74 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.03 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.44 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
from US $1.07 |
