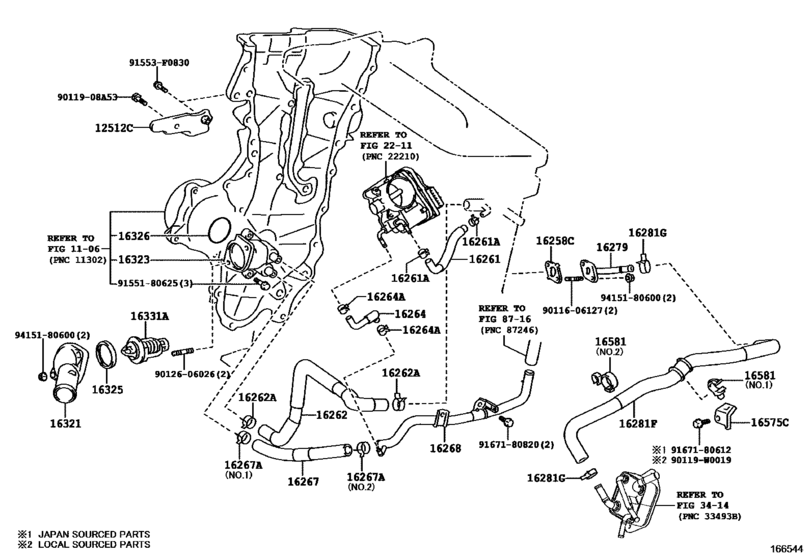

Radiator & Water Outlet ([10.2016 - ] (1610- )3ZRFAE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12512C
|
12512C
12512-0T040
Bracket, Alternator, No.2
[10.2016 -] 3ZRFAE..ZGX10 (L) |
12512-0T040 |
— | ||
|
12512C
|
12512C
12512-37010 Bracket, Alternator, No.2[10.2016 -] 3ZRFAE..ZGX10 (J) |
12512-37010 |
US $9.90 |
||
|
16258C
|
16258C
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[10.2016 -] 3ZRFAE..ZGX10 |
16258-28040 |
from US $2.59 |
||
|
16261
|
16261
16261-37031 Hose, Water By-Pass[10.2016 -] 3ZRFAE..ZGX10 |
16261-37031 |
US $7.28 |
||
|
16261A
|
16261A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96137-41501 |
from US $2.15 |
||
|
16262
|
16262
16262-37010 Hose, Water Inlet[10.2016 -] 3ZRFAE..ZGX10 |
16262-37010 |
from US $16.63 |
||
|
16262A
|
16262A
96136-42501 Clip(For Ventilation Hose)[10.2016 -] 3ZRFAE..ZGX10 |
96136-42501 |
from US $3.26 |
||
|
16264
|
16264
16264-37031 Hose, Water By-Pass, No.2[10.2016 -] 3ZRFAE..ZGX10 |
16264-37031 |
US $4.66 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96137-41501 |
from US $2.15 |
||
|
16267
|
16267
16267-37020 Hose, Water By-Pass, No.3[10.2016 -] 3ZRFAE..ZGX10 |
16267-37020 |
US $15.77 |
||
|
16267A
|
16267A
96136-42501 Clip(For Ventilation Hose)[10.2016 -] 3ZRFAE..ZGX10 NO.1 |
96136-42501 |
from US $3.26 |
||
|
16267A
|
16267A
96136-52701 Clamp Or Clip(For Water By-Pass Hose No.3)[10.2016 -] 3ZRFAE..ZGX10 NO.2 |
96136-52701 |
US $3.58 |
||
|
16268
|
16268
16268-37041 Pipe, Water By-Pass, No.1[10.2016 -] 3ZRFAE..ZGX10 |
16268-37041 |
US $42.08 |
||
|
16279
|
16279
16279-37010 Pipe, Water By-Pass, No.3[10.2016 -] 3ZRFAE..ZGX10 |
16279-37010 |
US $15.87 |
||
|
16281F
|
16281F
16282-37131
Hose, Water By-Pass, No.5
[10.2016 -] 3ZRFAE..ZGX10 |
16282-37131 |
— | ||
|
16281G
|
16281G
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[10.2016 -] 3ZRFAE..ZGX10 |
96136-42101 |
from US $2.93 |
||
|
16321
|
16321
16321-37010 Inlet, Water[10.2016 -] 3ZRFAE..ZGX10 |
16321-37010 |
from US $15.78 |
||
|
16323
|
16323
16323-37040 Housing, Water Inlet[10.2016 -] 3ZRFAE..ZGX10 |
16323-37040 |
US $67.20 |
||
|
16325
|
16325
16325-28010 Gasket, Water Inlet Housing, No.1[10.2016 -] 3ZRFAE..ZGX10 |
16325-28010 |
from US $3.80 |
||
|
16326
|
16326
16326-37030 Gasket, Water Inlet Housing, No.2[10.2016 -] 3ZRFAE..ZGX10 |
16326-37030 |
US $6.09 |
||
|
16331A
|
16331A
90916-03148 Thermostat[10.2016 -] 3ZRFAE..ZGX10 *WAX 80-93 |
90916-03148 |
from US $10.75 |
||
|
16575C
|
16575C
16575-37040 Bracket, Water Hose Clamp, No.1[10.2016 -] 3ZRFAE..ZGX10 |
16575-37040 |
US $3.06 |
||
|
16581
|
16581
16581-37010 Clamp, Hose(For Water Hose)[10.2016 -] 3ZRFAE..ZGX10 NO.2 |
16581-37010 |
US $7.88 |
||
|
16581
|
16581
16581-37100 Clamp, Hose(For Water Hose)[10.2016 -] 3ZRFAE..ZGX10 NO.1 |
16581-37100 |
US $6.05 |
||
|
90119W0019
|
90119W0019
90119-W0019 BOLT WWASHER |
90119-W0019 |
US $1.98 |
||
|
91553F0830
|
91553F0830
91553-F0830 New Genuine Part |
91553-F0830 |
US $1.02 |
||
|
9011908A53
|
9011908A53
90119-08A53 BOLT WWASHER |
90119-08A53 |
US $1.43 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.64 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.80 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
