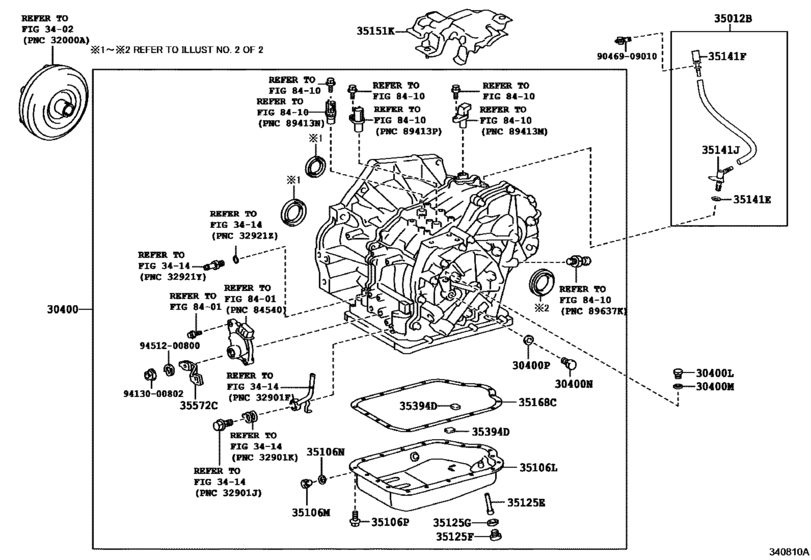

Transaxle Assy(Cvt) ([10.2016 - ] K114 (1610- )ZGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- RUS
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-10040
Transaxle Assy, Continuously Variable
[10.2016 -] ZGX10 K114 |
30400-10040 |
— | ||
|
30400L
|
30400L
90341-12025 Plug, No.4[10.2016 -] NGX10,50,ZGX10..CVT |
90341-12025 |
US $3.40 |
||
|
30400M
|
30400M
90430-12221 Gasket[10.2016 -] NGX10,50,ZGX10..CVT |
90430-12221 |
from US $1.07 |
||
|
30400N
|
30400N
90341-18077 Plug , Filler(CVT FE)[10.2016 -] NGX10,50,ZGX10..CVT |
90341-18077 |
from US $3.40 |
||
|
30400P
|
30400P
90430-18008 Gasket[10.2016 -] NGX10,50,ZGX10..CVT |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
30400P
|
30400P
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.2016 -] NGX10,50,ZGX10..CVT |
90430-T0021 |
US $1.01 |
||
|
35012B
|
35012B
35012-10010
Hose Sub-Assy, Transmission Breather
[10.2016 -] ZGX10 |
35012-10010 |
— | ||
|
35106L
|
35106L
35106-28100 Pan Sub-Assy, Transaxle Oil(Cvt)[10.2016 -] ZGX10 |
35106-28100 |
US $60.31 |
||
|
35106M
|
35106M
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[10.2016 -] ZGX10 |
90341-18016 |
from US $1.83 |
||
|
35106N
|
35106N
90430-01001 Gasket, Drain Plug(Cvt)[10.2016 -] ZGX10 |
90430-01001 |
US $1.08 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.2016 -] ZGX10 |
90119-06173 |
from US $0.76 |
||
|
35125E
|
35125E
35125-28170 Tube, Transmission Oil Filler, No.1[10.2016 -] ZGX10 |
35125-28170 |
US $3.23 |
||
|
35125F
|
35125F
90341-12034 Plug Sub-Assy, Drain (Atm)[10.2016 -] NGX10,50,ZGX10..CVT |
90341-12034 |
from US $3.16 |
||
|
35125G
|
35125G
90430-12008 Gasket (For Shift Inter Lock Plate)[10.2016 -] NGX10,50,ZGX10..CVT |
90430-12008 |
US $1.61 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[10.2016 -] NGX10,50,ZGX10..CVT |
90301-06021 |
US $2.51 |
||
|
35141F
|
35141F
90930-03216 Plug, Breather, No.1(Cvt)[10.2016 -] NGX10,50,ZGX10..CVT |
90930-03216 |
US $4.66 |
||
|
35141J
|
35141J
90930-03232
Plug, Breather, No.2(Cvt)
[10.2016 -] ZGX10 |
90930-03232 |
— | ||
|
35151K
|
35151K
35151-48070 Cover, Automatic Transmission Case[10.2016 -] ZGX10 |
35151-48070 |
US $10.77 |
||
|
35168C
|
35168C
35168-28020 Gasket, Transaxle Oil Pan(Cvt)[10.2016 -] ZGX10 |
35168-28020 |
from US $7.35 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[10.2016 -] ZGX10 |
35394-30011 |
from US $5.62 |
||
|
35572C
|
35572C
35572-28130 Lever, Transmission Control Shaft[10.2016 -] ZGX10 |
35572-28130 |
US $11.29 |
||
|
9046909010
|
9046909010
90469-09010 New Genuine Part |
90469-09010 |
US $1.97 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
