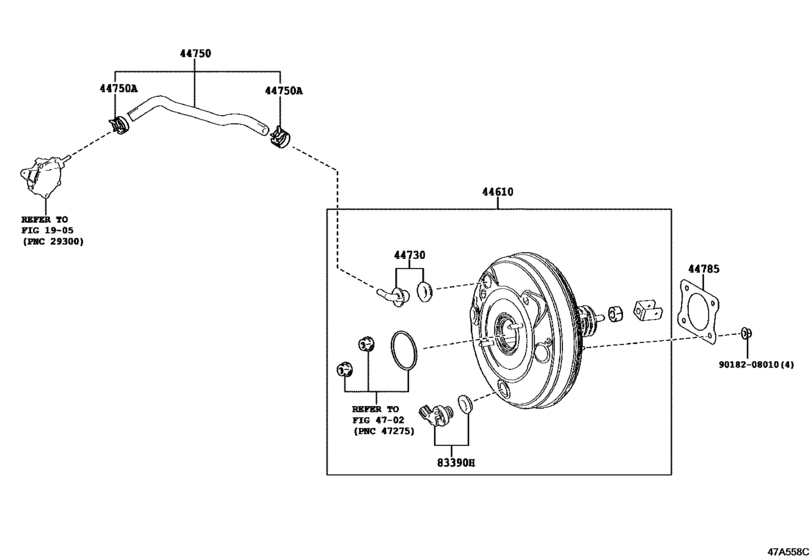

Brake Booster & Vacuum Tube ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-F9060
Booster Assy, Brake
[02.2017 -] ZGX10 |
44610-F9060 |
— | ||
|
44730
|
44730
44730-F9010
Valve Assy, Vacuum Check(For Brake)
[02.2017 -] ZGX10 |
44730-F9010 |
— | ||
|
44750
|
44750
44750-F4030
Hose Assy, Vacuum
[02.2017 -] ZGX10 |
44750-F4030 |
— | ||
|
44750A
|
44750A
90466-W0008
Clip(For Check Valve To Connector Tube)
[02.2017 -] ZGX10 |
90466-W0008 |
— | ||
|
44785
|
44785
44785-05020 Gasket, Brake BoosterBRAKE BOOSTER [02.2017 -] ZGX10 |
44785-05020 |
US $8.59 |
||
|
83390H
|
83390H
83390-09020 Switch Assy, Vacuum Warning[02.2017 -] ZGX10 |
83390-09020 |
US $50.67 |
||
|
9018208010
|
9018208010
90182-08010 New Genuine Part |
90182-08010 |
US $0.61 |
