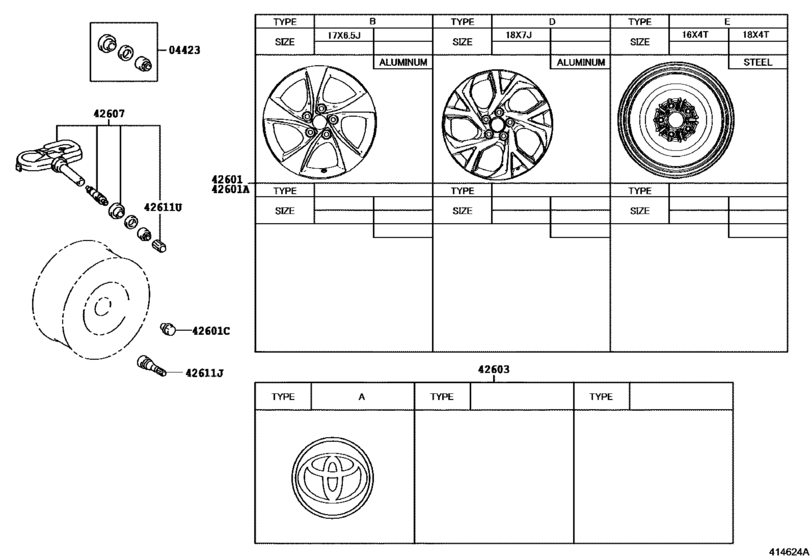

Disc Wheel & Wheel Cap ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-02010 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[02.2017 -] ZGX10 |
04423-02010 |
US $4.68 |
||
|
42601
|
42601
42611-F4030
Wheel, Disc
[02.2017 -] ZGX10 17X6.5J,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE B:REFER ILLUST. |
42611-F4030 |
— | ||
|
42601
|
42601
42611-F4040
Wheel, Disc
[02.2017 -] ZGX10 18X7J,TYPE D:REFER ILLUST. |
42611-F4040 |
— | ||
|
42601A
|
42601A
42611-21280 Wheel, Disc (For Spare)DISC (FOR SPARE) [02.2017 -] ZGX10 16X4T,TYPE E:REFER ILLUST.; ZGX10 16X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.; ZGX10 16X4T,TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES,TYPE E:REFER ILLUST.; ZGX10 16X4T,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYP |
42611-21280 |
US $155.80 |
||
|
42601A
|
42601A
42611-30F31
Wheel, Disc (For Spare)
[02.2017 -] ZGX10 18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST. |
42611-30F31 |
— | ||
|
42601C
|
42601C
90942-01033 Nut, Hub (For Axle)[02.2017 -] ZGX10 |
90942-01033 |
from US $2.28 |
||
|
42603
|
42603
42603-48140 Ornament Sub-Assy, Wheel Hub[02.2017 -] ZGX10 *ALU,TYPE A:REFER ILLUST. |
42603-48140 |
from US $12.87 |
||
|
42607
|
42607
42607-F4010
Valve Sub-Assy, Tire Pressure Monitor
[02.2017 -] ZGX10 |
42607-F4010 |
— | ||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[02.2017 -] ZGX10; ZGX10 TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES; ZGX10 TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[02.2017 -] ZGX10; ZGX10 TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES; ZGX10 TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES |
90080-94031 |
US $1.48 |
||
|
42611U
|
42611U
90942-W5001
Cap, Tire Valve
[02.2017 -] ZGX10 |
90942-W5001 |
— | ||
