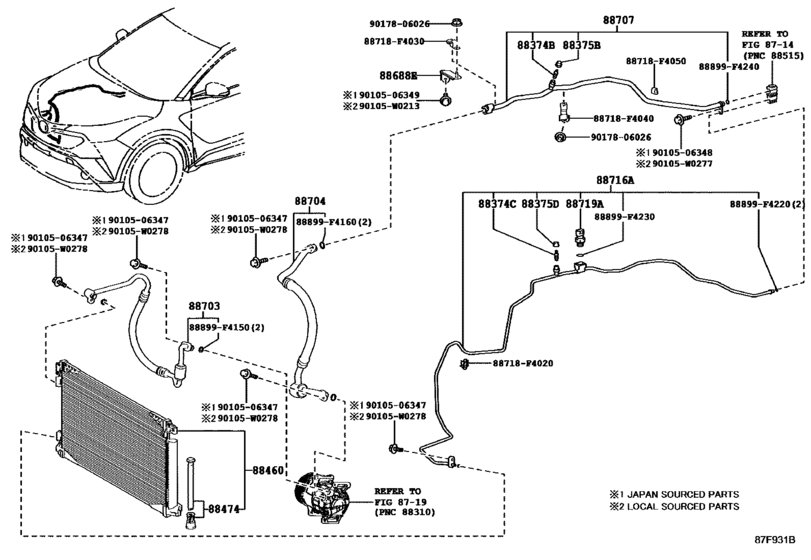

Heating & Air Conditioning - Cooler Piping ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88899-F4170
Valve, Service, No.1
[02.2017 -] ZGX10 |
88899-F4170 |
— | ||
|
88374C
|
88374C
88899-F4170
Valve, Service, No.1
[02.2017 -] ZGX10 |
88899-F4170 |
— | ||
|
88375B
|
88375B
88899-F4200
Cap, Service Valve, No.1
[02.2017 -] ZGX10 |
88899-F4200 |
— | ||
|
88375D
|
88375D
88899-F4180
Cap, Service Valve, No.2
[02.2017 -] ZGX10 |
88899-F4180 |
— | ||
|
88460
|
88460
88450-F4010
Condenser Assy, Cooler
[02.2017 -] ZGX10 |
88450-F4010 |
— | ||
|
88474
|
88474
88899-F4140
Dryer, Cooler
[02.2017 -] ZGX10 |
88899-F4140 |
— | ||
|
88688E
|
88688E
88688-F4010
Bracket, Cooler Refrigerant Hose, No.1
[02.2017 -] ZGX10 |
88688-F4010 |
— | ||
|
88703
|
88703
88703-F4010
Hose Sub-Assy, Discharge
[02.2017 -] ZGX10 |
88703-F4010 |
— | ||
|
88704
|
88704
88704-F4010
Hose Sub-Assy, Suction
[02.2017 -] ZGX10 |
88704-F4010 |
— | ||
|
88707
|
88707
88717-F4010
Pipe Sub-Assy, Suction
[02.2017 -] ZGX10 |
88717-F4010 |
— | ||
|
88716A
|
88716A
88716-F4030
Pipe, Cooler Refrigerant Liquid, A
[02.2017 -] ZGX10 |
88716-F4030 |
— | ||
|
88719A
|
88719A
88719-F4010
Sensor, Airconditioner Pressure
[02.2017 -] ZGX10 |
88719-F4010 |
— | ||
|
9010506347
|
9010506347
90105-06347 New Genuine Part |
90105-06347 |
US $1.08 |
||
|
9010506348
|
9010506348
90105-06348 New Genuine Part |
90105-06348 |
US $1.08 |
||
|
9010506349
|
9010506349
90105-06349 BOLT FLANGE |
90105-06349 |
from US $0.51 |
||
|
9017806026
|
9017806026
90178-06026 New Genuine Part |
90178-06026 |
US $1.43 |
