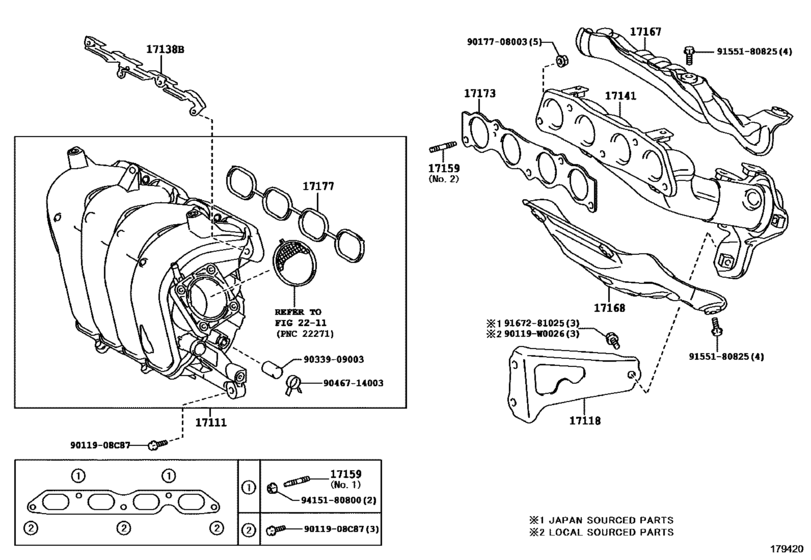

Manifold ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-37031 Manifold, IntakeINTAKE [02.2017 -] 3ZRFAE..ZGX10 |
17120-37031 |
from US $357.24 |
||
|
17118
|
17118
17118-0T030
Stay, Manifold
[02.2017 -] 3ZRFAE..ZGX10 |
17118-0T030 |
— | ||
|
17138B
|
17138B
17138-37011 Stay, Intake Manifold[02.2017 -] 3ZRFAE..ZGX10 |
17138-37011 |
US $13.76 |
||
|
17141
|
17141
17141-37250
Manifold, Exhaust
[02.2017 - 06.2017] 3ZRFAE..ZGX10 |
17141-37250 |
— | ||
|
17159
|
17159
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[02.2017 -] 3ZRFAE..ZGX10 NO.1 |
90126-08026 |
from US $2.34 |
||
|
17159
|
17159
90126-08052 Bolt, Stud(For Oil Pan)[02.2017 -] 3ZRFAE..ZGX10 NO.2 |
90126-08052 |
from US $0.78 |
||
|
17167
|
17167
17167-37110 Insulator, Exhaust Manifold Heat, No.1[02.2017 -] 3ZRFAE..ZGX10 |
17167-37110 |
US $59.55 |
||
|
17168
|
17168
17168-37130
Insulator, Exhaust Manifold Heat, No.2
[02.2017 -] 3ZRFAE..ZGX10 |
17168-37130 |
— | ||
|
17173
|
17173
17173-37010 Gasket, Exhaust Manifold To Head[02.2017 -] 3ZRFAE..ZGX10 |
17173-37010 |
from US $13.18 |
||
|
17177
|
17177
17177-37030 Gasket, Intake Manifold To Head, No.1[02.2017 -] 3ZRFAE..ZGX10 |
17177-37030 |
from US $10.45 |
||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
9011908C87
|
9011908C87
90119-08C87 New Genuine Part |
90119-08C87 |
US $1.79 |
||
|
9017708003
|
9017708003
90177-08003 NUT LOCK |
90177-08003 |
from US $0.76 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.33 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
