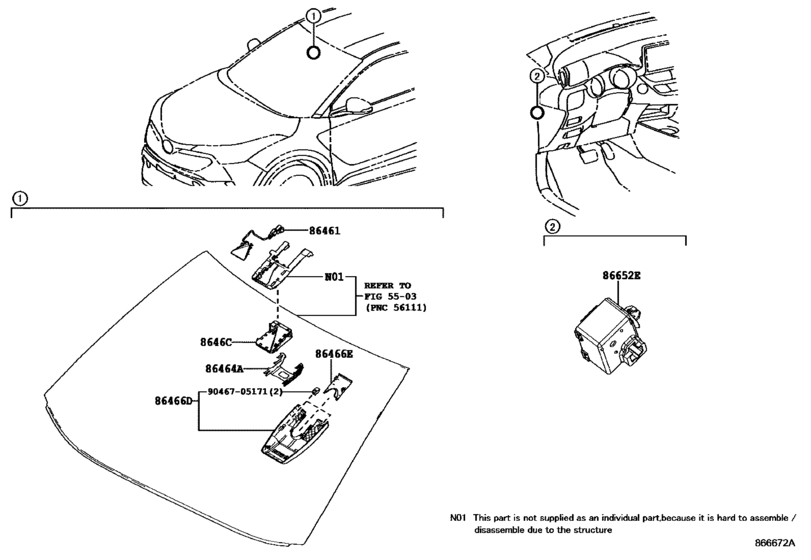

Pre-Collision System ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8646C
|
8646C
8646C-F4010 Camera, Forward Recognition[02.2017 - 09.2017] ZGX10; ZGX10 MEXICO SPEC |
8646C-F4010 |
US $822.12 |
||
|
86461
|
86461
86461-10020 Hood, Forward Recognition[02.2017 -] ZGX10 |
86461-10020 |
US $85.80 |
||
|
86464A
|
86464A
86464-F4010
Latch, Forward Recognition
[02.2017 -] ZGX10; ZGX10 MEXICO SPEC |
86464-F4010 |
— | ||
|
86466D
|
86466D
86466-F4011
Cover, Forward Recognition, No.1
[02.2017 -] ZGX10; ZGX10 MEXICO SPEC |
86466-F4011 |
— | ||
|
86466E
|
86466E
86466-F4021
Cover, Forward Recognition, No.2
[02.2017 -] ZGX10; ZGX10 MEXICO SPEC |
86466-F4021 |
— | ||
|
86652E
|
86652E
86652-50010 Buzzer Assy[02.2017 -] ZGX10; ZGX10 MEXICO SPEC |
86652-50010 |
from US $31.45 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.62 |
