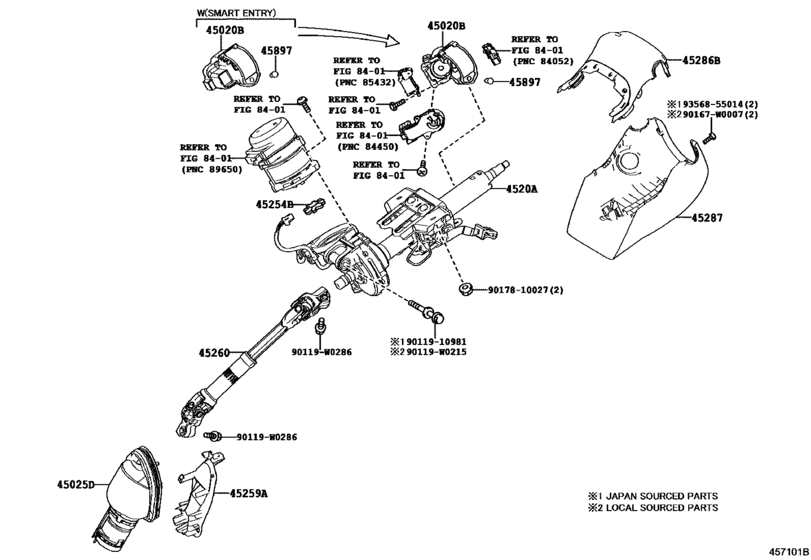

Steering Column & Shaft ([02.2017 - ] (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4520A
|
4520A
4520A-F4020
Column Sub-Assy, Electric Power Steering
[02.2017 -] ZGX10 |
4520A-F4020 |
— | ||
|
4520A
|
4520A
4520A-F4040
Column Sub-Assy, Electric Power Steering
[02.2017 -] ZGX10 WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
4520A-F4040 |
— | ||
|
45020B
|
45020B
45020-0H040
Actuator Or Upper Bracket Assy, Steering Lock
[02.2017 -] ZGX10 WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
45020-0H040 |
— | ||
|
45020B
|
45020B
45280-0K140
Actuator Or Upper Bracket Assy, Steering Lock
[02.2017 -] ZGX10 |
45280-0K140 |
— | ||
|
45025D
|
45025D
45025-F4020
Cover Sub-Assy, Steering Column Hole, No.1
[02.2017 -] ZGX10 |
45025-F4020 |
— | ||
|
45254B
|
45254B
45254-28040 Damper, Electric Power Steering Motor ShaftELECTRIC POWER STEERING MOTOR SHAFT [02.2017 -] ZGX10 |
45254-28040 |
from US $2.96 |
||
|
45259A
|
45259A
45259-F4020
Sheet, Column Hole Cover Silencer
[02.2017 -] ZGX10 |
45259-F4020 |
— | ||
|
45260
|
45260
45260-F4010
Shaft Assy, Steering Intermediate, No.2
[02.2017 -] ZGX10 |
45260-F4010 |
— | ||
|
45286B
|
45286B
45286-F4010-C0
Cover, Steering Column, Upr
[02.2017 -] ZGX10 EU BLACK,TRIM2# |
45286-F4010-C0 |
— | ||
|
45287
|
45287
45287-F4010-C0
Cover, Steering Column, Lwr
[02.2017 -] ZGX10 EU BLACK,TRIM2# |
45287-F4010-C0 |
— | ||
|
45287
|
45287
45287-F4020-C0
Cover, Steering Column, Lwr
[02.2017 -] ZGX10 WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR),EU BLACK,TRIM2# |
45287-F4020-C0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[02.2017 -] ZGX10 |
45897-12020 |
from US $2.63 |
||
|
90119W0215
|
90119W0215
90119-W0215
Bolt, Tilt Steering Pawl Set
|
90119-W0215 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
9011910981
|
9011910981
90119-10981 Bolt, Tilt Steering Pawl Set |
90119-10981 |
from US $1.52 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
