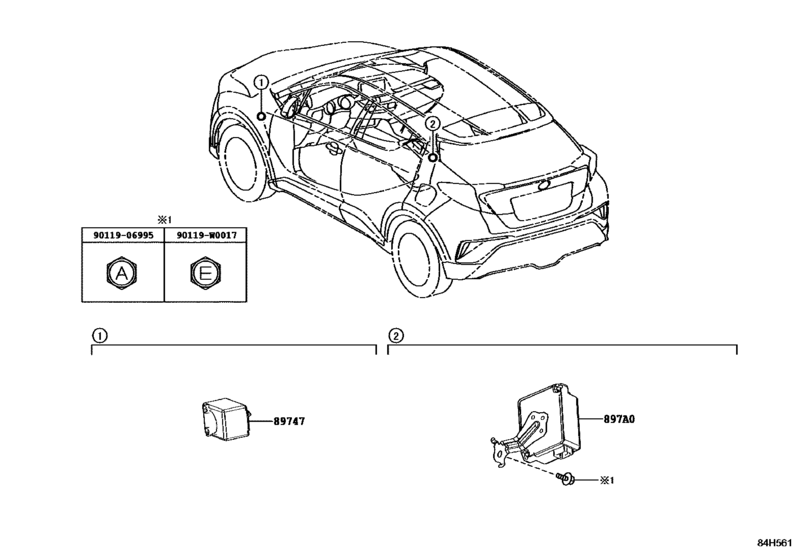

Wireless Door Lock ([02.2017 - ] W/O(SMART ENTRY) (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
897A0
|
897A0
897A0-F4050
Receiver Assy,door Control & Tire Pressure Monitoring System
[02.2017 -] ZGX10; ZGX10 MEXICO SPEC&TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&WIRELESS DOOR LOC K-SMART ENTRY(*DRP DOOR & BACK DOOR)&KEY PLATE-FOR SMART(2); ZGX10 MEXICO SPEC&TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&WIRELESS DOO |
897A0-F4050 |
— | ||
|
897A0
|
897A0
897A0-F4070
Receiver Assy,door Control & Tire Pressure Monitoring System
[02.2017 -] ZGX10 KEY PLATE-WIRELESS KEY(2) |
897A0-F4070 |
— | ||
|
89747
|
89747
89747-05010 Buzzer, Wireless Door LockWIRELESS DOOR LOCK [02.2017 -] ZGX10; ZGX10 MEXICO SPEC&TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&WIRELESS DOOR LOC K-SMART ENTRY(*DRP DOOR & BACK DOOR)&KEY PLATE-FOR SMART(2); ZGX10 MEXICO SPEC&TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&WIRELESS DOO |
89747-05010 |
US $39.02 |
||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
