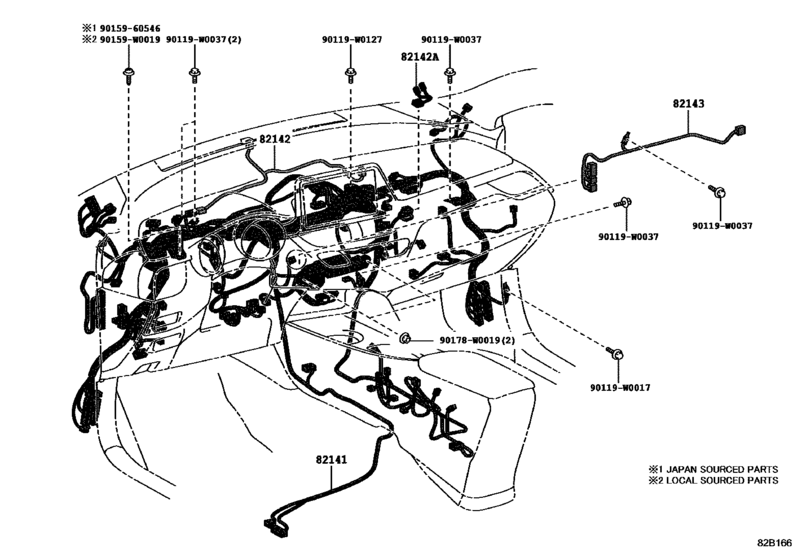

Wiring & Clamp ([02.2017 - ] INSTRUMENT PANEL (1702- )) Diagram Toyota C-HR
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- ZGX10
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- From
- 02.2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-F4D30
Wire, Instrument Panel
[02.2017 -] ZGX10 |
82141-F4D30 |
— | ||
|
82141
|
82141
82141-F4D70
Wire, Instrument Panel
[02.2017 -] ZGX10 WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
82141-F4D70 |
— | ||
|
82142
|
82142
82142-F4030
Wire, Instrument Panel, No.2
[02.2017 -] ZGX10 |
82142-F4030 |
— | ||
|
82142A
|
82142A
82140-F4010
Wire, Instrument Panel, No.2
[02.2017 -] ZGX10 |
82140-F4010 |
— | ||
|
82143
|
82143
82143-F4010
Wire, Instrument Panel, No.3
[02.2017 -] ZGX10 |
82143-F4010 |
— | ||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
90119W0037
|
90119W0037
90119-W0037
Bolt, W/washer
|
90119-W0037 |
— | ||
|
90119W0127
|
90119W0127
90119-W0127 New Genuine Part |
90119-W0127 |
US $1.02 |
||
|
90159W0019
|
90159W0019
90159-W0019
New Genuine Part
|
90159-W0019 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $1.08 |
||
