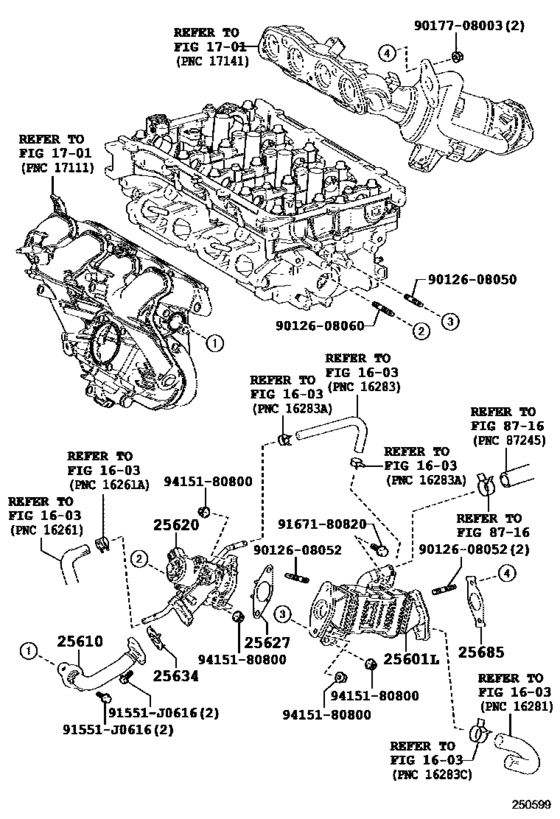

Exhaust Gas Recirculation System ([12.2016 - ] (1612- )2ZRFXE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- G
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601L
|
25601L
25601-37020 Pipe Sub-Assy, Egr W/cooler[12.2016 -] 2ZRFXE..ZYX10 |
25601-37020 |
US $200.93 |
||
|
25610
|
25610
25610-37020 Pipe Assy, Egr[12.2016 -] 2ZRFXE..ZYX10 |
25610-37020 |
US $52.75 |
||
|
25620
|
25620
25620-37140 Valve Assy, Egr[12.2016 -] 2ZRFXE..ZYX10 |
25620-37140 |
US $294.40 |
||
|
25627
|
25627
25627-37020 Gasket, Egr Valve[12.2016 -] 2ZRFXE..ZYX10 |
25627-37020 |
US $4.84 |
||
|
25634
|
25634
25634-37020 Gasket, Egr Pipe[12.2016 -] 2ZRFXE..ZYX10 |
25634-37020 |
US $4.84 |
||
|
25685
|
25685
25685-37020 Gasket, Egr Cooler, No.1[12.2016 -] 2ZRFXE..ZYX10 |
25685-37020 |
US $3.76 |
||
|
91551J0616
|
91551J0616
91551-J0616 New Genuine Part |
91551-J0616 |
US $1.08 |
||
|
9012608050
|
9012608050
90126-08050 New Genuine Part |
90126-08050 |
US $1.43 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
from US $2.40 |
||
|
9017708003
|
9017708003
90177-08003 NUT LOCK |
90177-08003 |
from US $0.76 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.80 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
