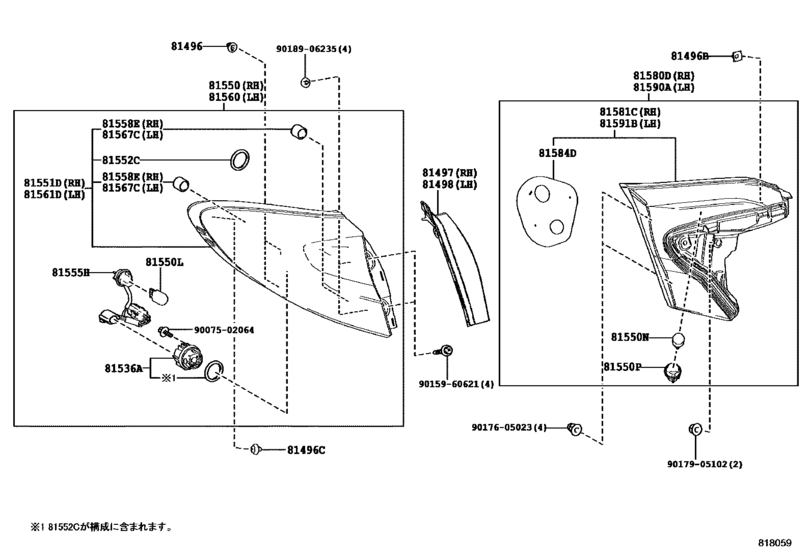

Rear Combination Lamp ([12.2016 - ] ﾊﾞﾙﾌﾞｼｷ (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- G
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[12.2016 -] NGX50,ZYX10 |
81496-52020 |
from US $0.82 |
||
|
81496B
|
81496B
76817-26040 Clip, Back Door Outside Garnish[12.2016 -] NGX50,ZYX10 |
76817-26040 |
from US $1.27 |
||
|
81496C
|
81496C
81496-60010 Guide, Rear Combination Lamp[12.2016 -] NGX50,ZYX10 |
81496-60010 |
from US $1.11 |
||
|
81497
|
81497
81497-10010 Cover, Rear Combination Lamp, Rh[12.2016 -] NGX50,ZYX10 |
81497-10010 |
US $24.86 |
||
|
81498
|
81498
81498-10010 Cover, Rear Combination Lamp, Lh[12.2016 -] NGX50,ZYX10 |
81498-10010 |
US $24.86 |
||
|
81536A
|
81536A
81536-52C80 Led, Rear Combination Lamp[12.2016 -] NGX50,ZYX10 |
81536-52C80 |
from US $34.44 |
||
|
81550
|
81550
81550-10380 Lamp Assy, Rear Combination, Rh[12.2016 -] NGX50,ZYX10 |
81550-10380 |
US $313.04 |
||
|
81550
|
81550
81550-10390 Lamp Assy, Rear Combination, Rh[12.2016 -] NGX50,ZYX10 ヘッド ランプ−ＬＥＤ ＆ ＊ＡＨＢ; NGX50,ZYX10..S,ST ヘッド ランプ−ＬＥＤ |
81550-10390 |
US $585.31 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[12.2016 -] NGX50,ZYX10 １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
from US $3.22 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[12.2016 -] NGX50,ZYX10 １２Ｖ １６Ｗ |
90981-11059 |
from US $3.24 |
||
|
81550P
|
81550P
90075-60001 Socket And Wire, License Plate Lamp[12.2016 -] NGX50,ZYX10 |
90075-60001 |
from US $6.57 |
||
|
81551D
|
81551D
81551-10380 Lens & Body, Rear Combination Lamp, Rh[12.2016 -] NGX50,ZYX10 |
81551-10380 |
US $283.46 |
||
|
81552C
|
81552C
90075-68010 Gasket, Rear Combination Lamp[12.2016 -] NGX50,ZYX10 |
90075-68010 |
US $10.93 |
||
|
81555H
|
81555H
81555-10380 Socket & Wire, Rear Combination Lamp[12.2016 -] NGX50,ZYX10 |
81555-10380 |
US $17.04 |
||
|
81558E
|
81558E
90075-15512 Cover, Rear Combination Lamp, Rh[12.2016 -] NGX50,ZYX10 |
90075-15512 |
US $10.93 |
||
|
81560
|
81560
81560-10380 Lamp Assy, Rear Combination, Lh[12.2016 -] NGX50,ZYX10 |
81560-10380 |
US $313.04 |
||
|
81560
|
81560
81560-10390 Lamp Assy, Rear Combination, Lh[12.2016 -] NGX50,ZYX10 ヘッド ランプ−ＬＥＤ ＆ ＊ＡＨＢ; NGX50,ZYX10..S,ST ヘッド ランプ−ＬＥＤ |
81560-10390 |
US $585.31 |
||
|
81561D
|
81561D
81561-10380 Lens & Body, Rear Combination Lamp, Lh[12.2016 -] NGX50,ZYX10 |
81561-10380 |
US $283.46 |
||
|
81567C
|
81567C
90075-15512 Cover, Rear Combination Lamp, Rh[12.2016 -] NGX50,ZYX10 |
90075-15512 |
US $10.93 |
||
|
81580D
|
81580D
81580-10010 Lamp Assy, Rear, Rh[12.2016 -] NGX50,ZYX10 |
81580-10010 |
US $216.94 |
||
|
81580D
|
81580D
81580-10020 Lamp Assy, Rear, Rh[12.2016 -] NGX50,ZYX10 ヘッド ランプ−ＬＥＤ ＆ ＊ＡＨＢ; NGX50,ZYX10..S,ST ヘッド ランプ−ＬＥＤ |
81580-10020 |
US $394.58 |
||
|
81581C
|
81581C
81581-10010 Lens And Body, Rear Lamp, Rh[12.2016 -] NGX50,ZYX10 |
81581-10010 |
US $212.58 |
||
|
81584D
|
81584D
81584-10010 Gasket, Rear Lamp[12.2016 -] NGX50,ZYX10 |
81584-10010 |
US $13.44 |
||
|
81584D
|
81584D
81584-10020 Gasket, Rear Lamp[12.2016 -] NGX50,ZYX10 ヘッド ランプ−ＬＥＤ ＆ ＊ＡＨＢ; NGX50,ZYX10..S,ST ヘッド ランプ−ＬＥＤ |
81584-10020 |
US $16.13 |
||
|
81590A
|
81590A
81590-10010 Lamp Assy, Rear, Lh[12.2016 -] NGX50,ZYX10 |
81590-10010 |
US $216.94 |
||
|
81590A
|
81590A
81590-10020 Lamp Assy, Rear, Lh[12.2016 -] NGX50,ZYX10 ヘッド ランプ−ＬＥＤ ＆ ＊ＡＨＢ; NGX50,ZYX10..S,ST ヘッド ランプ−ＬＥＤ |
81590-10020 |
US $394.58 |
||
|
81591B
|
81591B
81591-10010 Lens And Body, Rear Lamp, Lh[12.2016 -] NGX50,ZYX10 |
81591-10010 |
US $212.58 |
||
|
9007502064
|
9007502064
90075-02064 New Genuine Part |
90075-02064 |
US $1.08 |
||
|
9015960621
|
9015960621
90159-60621 SCREW, W/WASHER |
90159-60621 |
from US $0.53 |
||
|
9017605023
|
9017605023
90176-05023 New Genuine Part |
90176-05023 |
US $1.43 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.76 |
||
|
9018906235
|
9018906235
90189-06235 GROMMET SCREW |
90189-06235 |
from US $0.60 |
