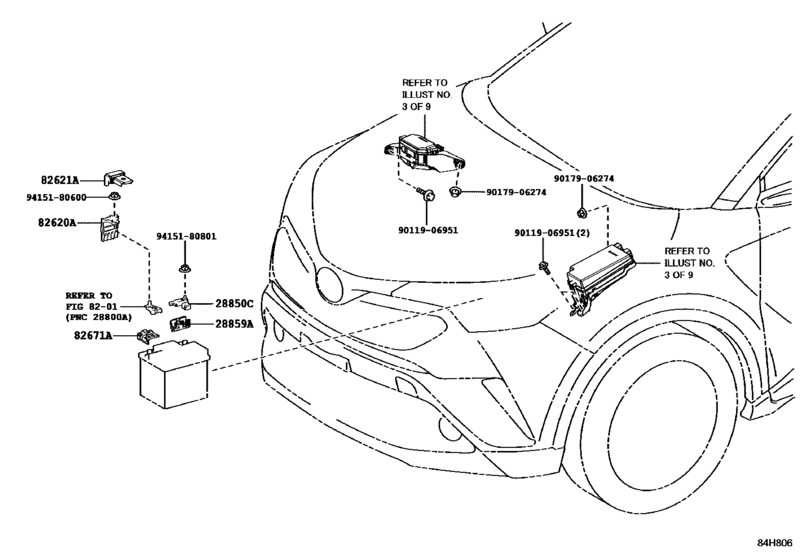

Switch & Relay & Computer ([12.2016 - ] ｴﾝｼﾞﾝﾙｰﾑ (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- G
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28850C
|
28850C
28850-25010 Sensor Assy, Battery State[12.2016 -] 8NRFTS,2ZRFXE..NGX50,ZYX10 |
28850-25010 |
from US $109.52 |
||
|
28859A
|
28859A
28859-47080 Holder, Battery Current Sensor[12.2016 -] 2ZRFXE..ZYX10 |
28859-47080 |
US $5.82 |
||
|
82620A
|
82620A
82620-47090 Block Assy, Fusible Link[12.2016 -] ZYX10 |
82620-47090 |
from US $38.76 |
||
|
82621A
|
82621A
82621-47020 Cover, Fusible Link[12.2016 -] ZYX10 |
82621-47020 |
from US $11.68 |
||
|
82671A
|
82671A
82671-47040 Block, Junction[12.2016 -] ZYX10 |
82671-47040 |
from US $6.38 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
