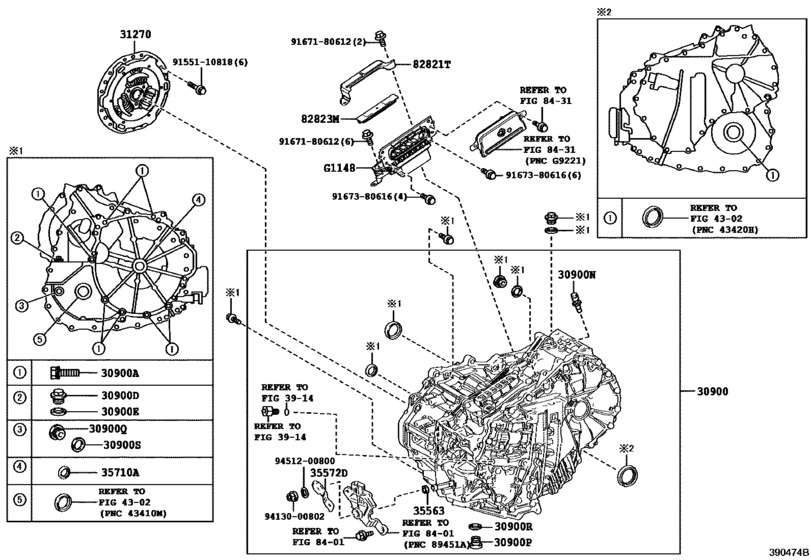

Transaxle Assy, Hv Or Fcv ([12.2016 - ] (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- G
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30900
|
30900
30900-47110 Transaxle Assy, Hybrid Vehicle[12.2016 -] ZYX10 |
30900-47110 |
US $3,640 |
||
|
30900A
|
30900A
91612-61045 Bolt(For Transaxle & Engine Setting)[12.2016 -] ZYX10 ＊１０−１．２５ＰＸ４５−３０ |
91612-61045 |
from US $1.15 |
||
|
30900D
|
30900D
90341-18060 Plug, W/head Straight Screw(For Transaxle Housing & Case)[12.2016 -] ZYX10 |
90341-18060 |
from US $4.30 |
||
|
30900E
|
30900E
90430-18008 Gasket[12.2016 -] ZYX10 |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
30900E
|
30900E
90430-T0021 Gasket(For Manual Transmission Filler Plug)[12.2016 -] ZYX10 |
90430-T0021 |
US $1.01 |
||
|
30900N
|
30900N
90930-03201 Plug, Breather(For Transaxle)BREATHER(FOR TRANSAXLE) [12.2016 -] ZYX10 |
90930-03201 |
US $1.60 |
||
|
30900P
|
30900P
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[12.2016 -] ZYX10 |
90341-18016 |
from US $1.83 |
||
|
30900Q
|
30900Q
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[12.2016 -] ZYX10 |
90341-18016 |
from US $1.83 |
||
|
30900R
|
30900R
90430-18008 Gasket[12.2016 -] ZYX10 |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
30900R
|
30900R
90430-T0021 Gasket(For Manual Transmission Filler Plug)[12.2016 -] ZYX10 |
90430-T0021 |
US $1.01 |
||
|
30900S
|
30900S
90430-18008 Gasket[12.2016 -] ZYX10 |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
30900S
|
30900S
90430-T0021 Gasket(For Manual Transmission Filler Plug)[12.2016 -] ZYX10 |
90430-T0021 |
US $1.01 |
||
|
31270
|
31270
31270-47070 Damper Assy, Transmission Input[12.2016 -] ZYX10 |
31270-47070 |
from US $430.56 |
||
|
35563
|
35563
90311-12016 Seal, Shift Control Actuator[12.2016 -] ZYX10 |
90311-12016 |
US $3.40 |
||
|
35572D
|
35572D
35572-10040 Lever, Transmission Control Shaft[12.2016 -] ZYX10 |
35572-10040 |
US $7.86 |
||
|
35710A
|
35710A
90311-25025 Seal, Type T Oil(For Input Shaft)[12.2016 -] ZYX10 |
90311-25025 |
from US $3.72 |
||
|
82821T
|
82821T
82821-47240 Cover, Connector[12.2016 -] ZYX10 |
82821-47240 |
from US $23.44 |
||
|
82823M
|
82823M
82823-47040 Cap, Terminal[12.2016 -] ZYX10 |
82823-47040 |
from US $12.11 |
||
|
9155110818
|
9155110818
91551-10818 New Genuine Part |
91551-10818 |
US $1.43 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
G1148
|
G1148
G1148-47070 Cable, Motor[12.2016 -] ZYX10 |
G1148-47070 |
US $101.92 |
||
