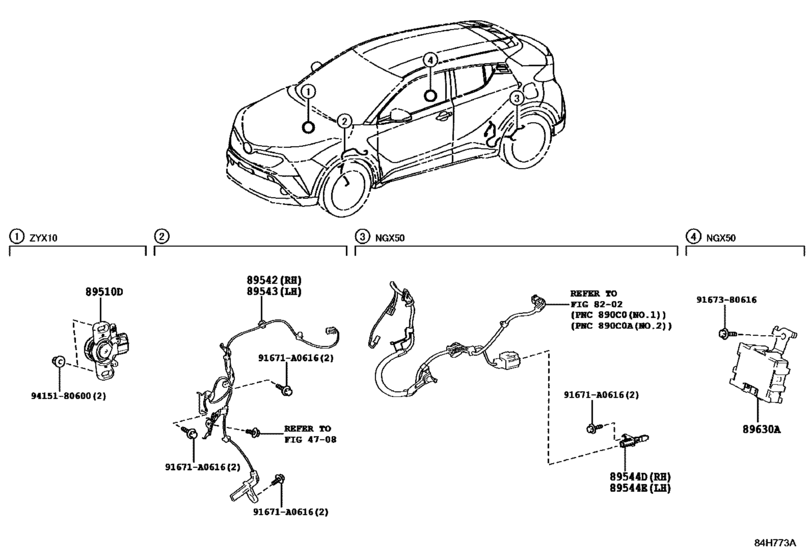

Abs & Vsc ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89510D
|
89510D
89510-47030 Sensor Assy, Brake Pedal Stroke[12.2016 -] ZYX10 |
89510-47030 |
from US $124.72 |
||
|
89542
|
89542
89542-10040 Sensor, Speed, Front Rh[12.2016 -] NGX50,ZYX10 |
89542-10040 |
US $99 |
||
|
89543
|
89543
89543-10040 Sensor, Speed, Front Lh[12.2016 -] NGX50,ZYX10 |
89543-10040 |
US $132.84 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
