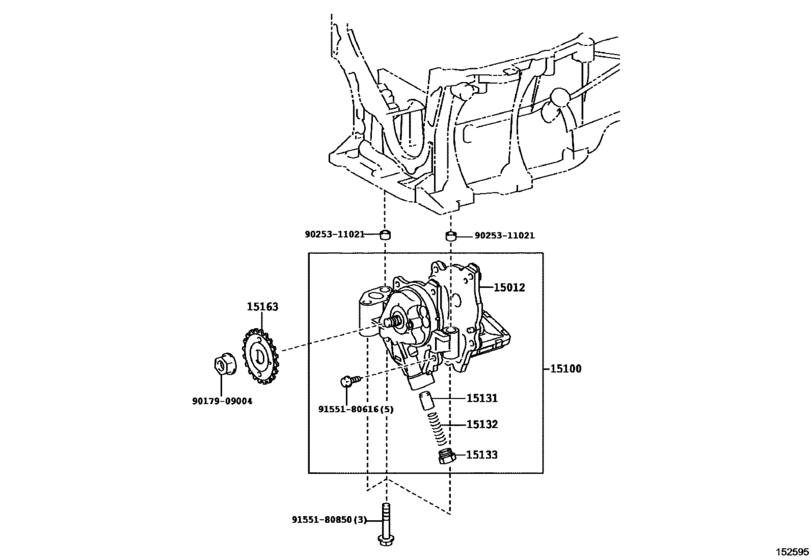

Engine Oil Pump ([12.2016 - ] (1612- )2ZRFXE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15012
|
15012
15012-37060 Cover Sub-Assy, Oil Pump[12.2016 -] 2ZRFXE..ZYX10 |
15012-37060 |
US $42.52 |
||
|
15100
|
15100
15100-37060 Pump Assy, Oil[12.2016 -] 2ZRFXE..ZYX10 |
15100-37060 |
US $151.42 |
||
|
15131
|
15131
15131-0A040 Valve, Oil Pump Relief[12.2016 -] 2ZRFXE..ZYX10 |
15131-0A040 |
from US $2.34 |
||
|
15132
|
15132
15132-46060 Spring, Oil Pump Relief Valve[12.2016 -] 2ZRFXE..ZYX10 |
15132-46060 |
US $2.77 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[12.2016 -] 2ZRFXE..ZYX10 |
15133-28020 |
from US $2.24 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[12.2016 -] 2ZRFXE..ZYX10 |
15163-28010 |
from US $3.76 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.03 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.44 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
from US $1.07 |
