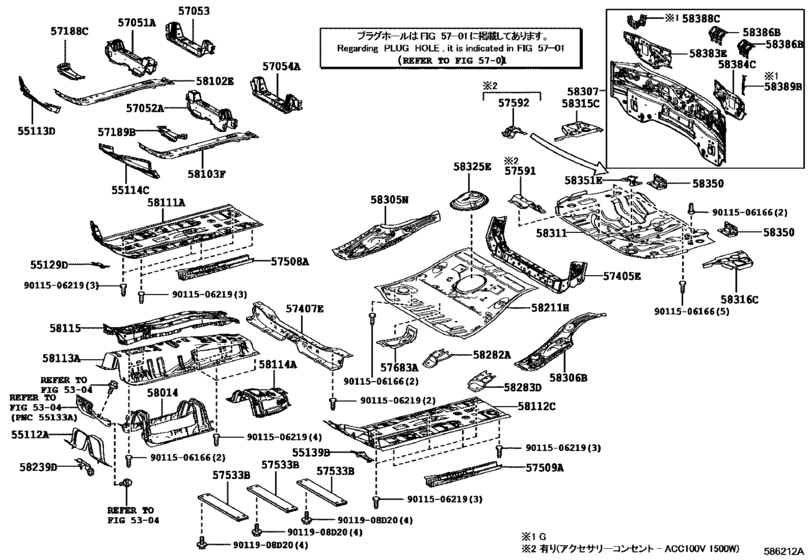

Floor Pan & Lower Back Panel ([12.2016 - ] ﾌﾛｱﾊﾟﾈﾙ (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55112A
|
55112A
55112-47040 Panel, Dash, No.2[12.2016 -] NGX50,ZYX10 |
55112-47040 |
US $53.81 |
||
|
55113D
|
55113D
55113-47020 Panel, Dash, Lower Rh[12.2016 -] NGX50,ZYX10 |
55113-47020 |
US $55.33 |
||
|
55114C
|
55114C
55114-47050 Panel, Dash, Lower Lh[12.2016 -] NGX50,ZYX10 |
55114-47050 |
US $55.33 |
||
|
55129D
|
55129D
55129-47020 Cover, Dash Panel Hole, Rh[12.2016 -] NGX50,ZYX10 |
55129-47020 |
US $3.49 |
||
|
55139B
|
55139B
55139-47020 Cover, Dash Panel Hole, Lh[12.2016 -] NGX50,ZYX10 |
55139-47020 |
US $3.49 |
||
|
57051A
|
57051A
57051-10010 Member Sub-Assy, Front Floor Cross, Rh[12.2016 -] NGX50,ZYX10 |
57051-10010 |
US $133.95 |
||
|
57052A
|
57052A
57052-10010 Member Sub-Assy, Front Floor Cross, Lh[12.2016 -] NGX50,ZYX10 |
57052-10010 |
US $133.95 |
||
|
57053
|
57053
57053-10010 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[12.2016 -] NGX50,ZYX10 |
57053-10010 |
US $87.36 |
||
|
57054A
|
57054A
57054-10010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[12.2016 -] NGX50,ZYX10 |
57054-10010 |
US $87.36 |
||
|
57188C
|
57188C
57188-47030 Reinforcement, Front Side Member Extention, Rh[12.2016 -] NGX50,ZYX10 |
57188-47030 |
US $28.54 |
||
|
57189B
|
57189B
57189-47020 Reinforcement, Front Side Member Extention, Lh[12.2016 -] NGX50,ZYX10 |
57189-47020 |
US $28.39 |
||
|
57405E
|
57405E
57405-47010 Member Sub-Assy, Center Floor Cross, No.2[12.2016 -] NGX50,ZYX10 |
57405-47010 |
US $200.93 |
||
|
57407E
|
57407E
57407-47020 Member Sub-Assy, Center Floor Cross, No.1[12.2016 -] ZYX10 |
57407-47020 |
US $179.09 |
||
|
57508A
|
57508A
57508-10010 Reinforcement Sub-Assy, Front Floor, Rh[12.2016 -] NGX50,ZYX10 |
57508-10010 |
US $69.31 |
||
|
57509A
|
57509A
57508-10010 Reinforcement Sub-Assy, Front Floor, Rh[12.2016 -] NGX50,ZYX10 |
57508-10010 |
US $69.31 |
||
|
57533B
|
57533B
57533-47030 Brace, Front Floor, Center[12.2016 -] ZYX10 |
57533-47030 |
from US $51.91 |
||
|
57591
|
57591
57591-10010 Bracket, Voltage Converter Mount, Lower Front[12.2016 -] ZYX10 アクセサリーコンセント−有り（ＡＣ１００Ｖ／１５００Ｗ電源） |
57591-10010 |
US $30.28 |
||
|
57592
|
57592
57592-10010 Bracket, Voltage Converter Mount, Lower Rear[12.2016 -] ZYX10 アクセサリーコンセント−有り（ＡＣ１００Ｖ／１５００Ｗ電源） |
57592-10010 |
US $10.92 |
||
|
57683A
|
57683A
57683-47040 Bracket, Fuel Tank Mounting, No.1[12.2016 -] ZYX10 |
57683-47040 |
US $29.41 |
||
|
58014
|
58014
58014-47010 Panel Sub-Assy, Front Floor, Rear Lower[12.2016 -] NGX50,ZYX10 |
58014-47010 |
US $116.48 |
||
|
58102E
|
58102E
58102-47020 Reinforcement Sub-Assy, Front Floor Side, Rh[12.2016 -] NGX50,ZYX10 |
58102-47020 |
US $88.82 |
||
|
58103F
|
58103F
58102-47020 Reinforcement Sub-Assy, Front Floor Side, Rh[12.2016 -] NGX50,ZYX10 |
58102-47020 |
US $88.82 |
||
|
58111A
|
58111A
58111-10200 Pan, Front Floor, Rh[12.2016 -] NGX50,ZYX10 |
58111-10200 |
US $196.56 |
||
|
58112C
|
58112C
58112-10040
Pan, Front Floor, Lh
[12.2016 -] NGX50,ZYX10 |
58112-10040 |
— | ||
| replacement | |||||
|
58112C
|
58112C
58112-10050 Pan, Front Floor, Lh[12.2016 -] NGX50,ZYX10 |
58112-10050 |
from US $197.61 |
||
|
58113A
|
58113A
58113-10080 Panel, Front Floor, Center[12.2016 -] ZYX10 |
58113-10080 |
US $276.64 |
||
|
58114A
|
58114A
58114-10040 Reinforcement, Front Floor Panel[12.2016 -] ZYX10 |
58114-10040 |
US $60.42 |
||
|
58115
|
58115
58115-10010 Reinforcement, Front Floor Panel, Front[12.2016 -] ZYX10 |
58115-10010 |
US $103.38 |
||
|
58211H
|
58211H
58211-47100 Pan, Center Floor[12.2016 -] ZYX10 |
58211-47100 |
US $196.56 |
||
|
58239D
|
58239D
58239-10020 Bracket, Cable Clamp[12.2016 -] NGX50,ZYX10 |
58239-10020 |
US $8.59 |
||
|
58282A
|
58282A
58282-47050 Base, Belt Anchor To Floor Pan, No.3 Rh[12.2016 -] NGX50,ZYX10 |
58282-47050 |
US $25.48 |
||
|
58283D
|
58283D
58283-47040 Base, Belt Anchor To Floor Pan, No.3 Lh[12.2016 -] NGX50,ZYX10 |
58283-47040 |
US $33.20 |
||
|
58305N
|
58305N
58305-47050 Extension Sub-Assy, Rear Floor To Quarter, Rh[12.2016 - 07.2018] ZYX10 |
58305-47050 |
US $50.96 |
||
|
58306B
|
58306B
58306-47050 Extension Sub-Assy, Rear Floor To Quarter, Lh[12.2016 - 07.2018] ZYX10 |
58306-47050 |
US $50.96 |
||
|
58307
|
58307
58307-10350 Panel Sub-Assy, Body Lower Back[12.2016 -] NGX50,ZYX10..S,ST |
58307-10350 |
US $251.20 |
||
|
58311
|
58311
58311-10210 Pan, Rear Floor[12.2016 -] NGX50,ZYX10 |
58311-10210 |
from US $196.56 |
||
|
58315C
|
58315C
58315-10030 Extension, Rear Floor Side Panel, Rh[12.2016 -] NGX50,ZYX10 |
58315-10030 |
US $17.76 |
||
|
58316C
|
58316C
58316-10030 Extension, Rear Floor Side Panel, Lh[12.2016 -] NGX50,ZYX10 |
58316-10030 |
US $17.50 |
||
|
58325E
|
58325E
58325-47050 Cover, Rear Floor Service Hole[12.2016 -] ZYX10 |
58325-47050 |
US $19.51 |
||
|
58350
|
58350
58350-47010 Reinforcement Assy, Rear Floor Panel, Rh[12.2016 -] NGX50,ZYX10 |
58350-47010 |
from US $22.18 |
||
|
58351E
|
58351E
58351-12060 Bracket, Spare Wheel Carrier[12.2016 -] NGX50,ZYX10 |
58351-12060 |
from US $8.29 |
||
|
58383E
|
58383E
58383-10030 Reinforcement, Body Lower Back, No.2 Rh[12.2016 -] NGX50,ZYX10 |
58383-10030 |
US $43.68 |
||
|
58384C
|
58384C
58384-10060 Reinforcement, Body Lower Back, No.2 Lh[12.2016 -] NGX50,ZYX10 |
58384-10060 |
US $43.68 |
||
|
58386B
|
58386B
58386-10030 Bracket, Rear Bumper Cover, No.2[12.2016 -] NGX50,ZYX10 |
58386-10030 |
US $11.07 |
||
|
9011908D20
|
9011908D20
90119-08D20 BOLT WWASHER |
90119-08D20 |
from US $0.70 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.94 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
||
