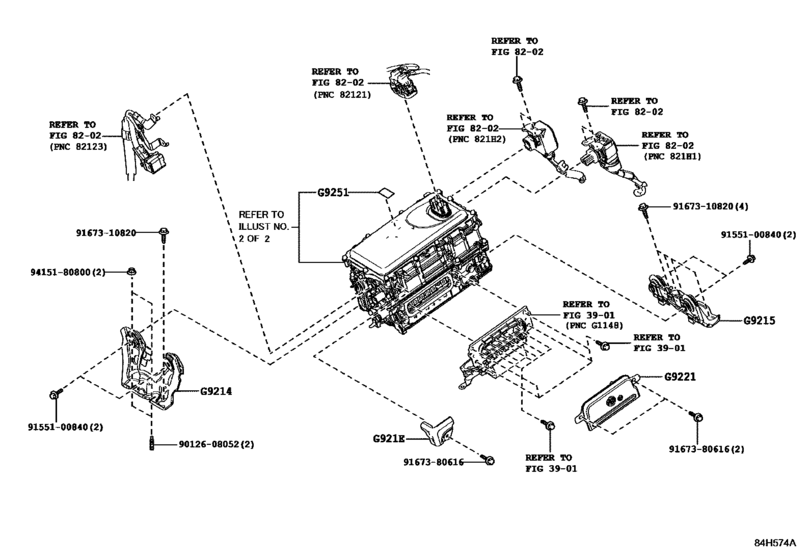

Hv Inverter ([12.2016 - ] ｲﾝﾊﾞｰﾀｼｭｳﾍﾝﾌﾞﾋﾝ (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9155100840
|
9155100840
91551-00840 Bolt (For Transaxle Housing & Transaxle Case Setting) |
91551-00840 |
from US $0.78 |
||
|
9167310820
|
9167310820
91673-10820 New Genuine Part |
91673-10820 |
US $1.43 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
G921E
|
G921E
G921E-47010 Protector, Inverter[12.2016 -] ZYX10 |
G921E-47010 |
US $7.57 |
||
|
G9214
|
G9214
G9214-47070 Bracket, Inverter, No.1[12.2016 -] ZYX10 |
G9214-47070 |
US $59.84 |
||
|
G9215
|
G9215
G9215-47050 Bracket, Inverter, No.2[12.2016 -] ZYX10 |
G9215-47050 |
US $50.52 |
||
|
G9221
|
G9221
G9022-47050 Cover, Inverter[12.2016 -] ZYX10 |
G9022-47050 |
US $32.93 |
||
|
G9251
|
G9251
G9251-47010 Seat, Inverter Name[12.2016 -] ZYX10 |
G9251-47010 |
US $1.31 |
