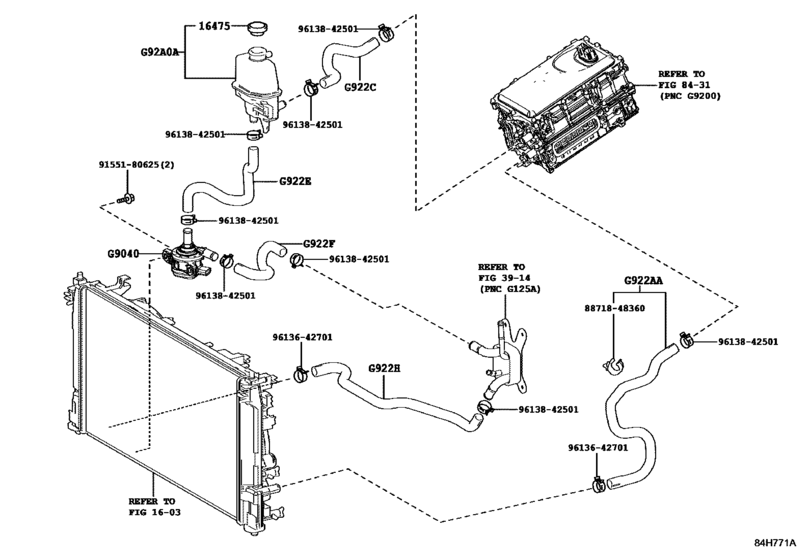

Inverter Cooling ([12.2016 - ] (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16475
|
16475
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[12.2016 -] 2ZRFXE..ZYX10 |
16475-28140 |
from US $20.16 |
||
|
8871848360
|
8871848360
88718-48360 Clip Or Clamp (For Heater Water Hose) |
88718-48360 |
US $1.97 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9613642701
|
9613642701
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-42701 |
from US $3.35 |
||
|
9613842501
|
9613842501
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-42501 |
from US $2.96 |
||
|
G92A0A
|
G92A0A
G91H0-47011 Tank Assy, Inverter Reserve[12.2016 -] ZYX10 |
G91H0-47011 |
from US $104.96 |
||
|
G922AA
|
G922AA
G922A-47010 Hose, Inverter Cooling Inlet, No.1[12.2016 -] ZYX10 |
G922A-47010 |
US $36.79 |
||
|
G922C
|
G922C
G922C-47010 Hose, Inverter Cooling Outlet, No.1[12.2016 -] ZYX10 |
G922C-47010 |
from US $9.98 |
||
|
G922E
|
G922E
G922E-47010 Hose, Hybrid Water Pump Inlet[12.2016 -] ZYX10 |
G922E-47010 |
from US $16.50 |
||
|
G922F
|
G922F
G922F-47010 Hose, Hybrid Water Pump Outlet, No.1[12.2016 -] ZYX10 |
G922F-47010 |
US $19.32 |
||
|
G922H
|
G922H
G922H-47010 Hose, Hybrid Radiator Inlet[12.2016 -] ZYX10 |
G922H-47010 |
from US $17.71 |
||
|
G9040
|
G9040
G9040-47040 Inverter Water Pump Assy(W/motor)[12.2016 -] ZYX10 |
G9040-47040 |
from US $266.14 |
