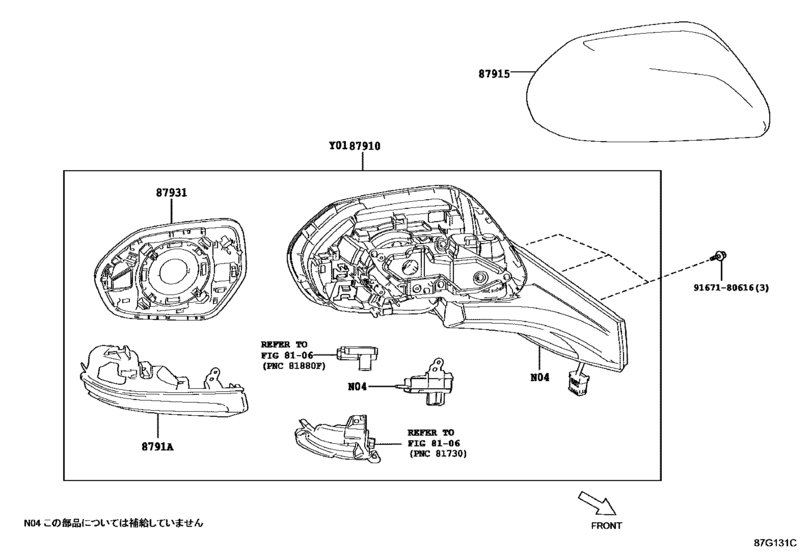

Mirror ([12.2016 - ] ﾐｷﾞｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8791A
|
8791A
8791A-10850 Cover, Outer Mirror, Rh No.2[12.2016 -] NGX50,ZYX10..S,ST |
8791A-10850 |
US $23 |
||
|
87910
|
87910
87910-10850 Mirror Assy, Outer Rear View, Rh[12.2016 -] NGX50,ZYX10..S,ST |
87910-10850 |
US $412.05 |
||
|
87915
|
87915
87915-10010-A0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 WHITE,2JU ,2NC ,2NJ ,2PR |
87915-10010-A0 |
US $31.30 |
||
|
87915
|
87915
87915-10010-A1 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 WHITE PEARL CS.,070 |
87915-10010-A1 |
US $51.74 |
||
|
87915
|
87915
87915-10010-B0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 METAL STREAM ME,1K0 |
87915-10010-B0 |
US $43.01 |
||
|
87915
|
87915
87915-10010-C0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 BLACK,2NA ,2NK ,2PQ |
87915-10010-C0 |
US $43.01 |
||
|
87915
|
87915
87915-10010-C1 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 BLACK MC.,209 |
87915-10010-C1 |
US $43.01 |
||
|
87915
|
87915
87915-10010-D0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 RED MC.,3T3 |
87915-10010-D0 |
US $51.74 |
||
|
87915
|
87915
87915-10010-E0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 DK. BROWN M.M.,4U3 |
87915-10010-E0 |
US $51.74 |
||
|
87915
|
87915
87915-10010-F0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 YELLOW,5A3 |
87915-10010-F0 |
US $31.30 |
||
|
87915
|
87915
87915-10010-G0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 RADIANT GREEN ME.,6W9 |
87915-10010-G0 |
US $31.30 |
||
|
87915
|
87915
87915-10010-J0 Cover, Outer Mirror, Rh[12.2016 -] NGX50,ZYX10 BLUE ME.,8T7 |
87915-10010-J0 |
US $51.74 |
||
|
87931
|
87931
87931-10850 Outer Mirror, Rh[12.2016 -] NGX50,ZYX10..S,ST |
87931-10850 |
US $68.71 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
