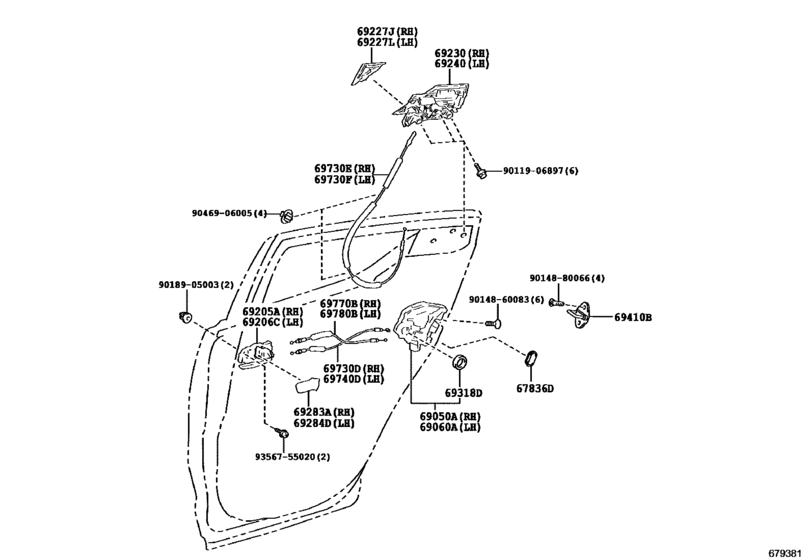

Rear Door Lock & Handle ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67836D
|
67836D
67836-33030 Cover, Rear Door Lock Child Protection, Rh[12.2016 -] NGX50,ZYX10 |
67836-33030 |
US $3.40 |
||
|
69050A
|
69050A
69050-10070 Lock Assy, Rear Door W/motor, Rh[12.2016 -] NGX50,ZYX10 |
69050-10070 |
US $185.60 |
||
|
69060A
|
69060A
69060-10070 Lock Assy, Rear Door W/motor, Lh[12.2016 -] NGX50,ZYX10 |
69060-10070 |
US $185.60 |
||
|
69205A
|
69205A
69205-10100-C1 Handle Sub-Assy, Front Door Inside, Rh[12.2016 -] NGX50,ZYX10 BLACK,TRIM2# |
69205-10100-C1 |
US $36.84 |
||
|
69206C
|
69206C
69206-10100-C1 Handle Sub-Assy, Front Door Inside, Lh[12.2016 -] NGX50,ZYX10 BLACK,TRIM2# |
69206-10100-C1 |
US $36.84 |
||
|
69227J
|
69227J
69227-10030 Cover, Rear Door Outside Handle, Rh[12.2016 -] NGX50,ZYX10 ブラック |
69227-10030 |
US $9.68 |
||
|
69227L
|
69227L
69228-10020 Cover, Rear Door Outside Handle, Lh[12.2016 -] NGX50,ZYX10 ブラック |
69228-10020 |
US $9.68 |
||
|
69230
|
69230
69230-10100-A0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 WHITE PEARL CS.,070 ,2NA |
69230-10100-A0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-B0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 METAL STREAM ME,1K0 ,2NK |
69230-10100-B0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-C0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 BLACK MC.,209 |
69230-10100-C0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-D0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 RED MC.,3T3 |
69230-10100-D0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-E0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 DK. BROWN M.M.,2NC ,4U3 |
69230-10100-E0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-F0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 YELLOW,2JU ,2PQ ,5A3 |
69230-10100-F0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-G0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 RADIANT GREEN ME.,2NJ ,6W9 |
69230-10100-G0 |
US $113.57 |
||
|
69230
|
69230
69230-10100-J0 Handle Assy, Rear Door Outside, Rh[12.2016 -] NGX50,ZYX10 BLUE ME.,2PR ,8T7 |
69230-10100-J0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-A0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 WHITE PEARL CS.,070 ,2NA |
69240-10100-A0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-B0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 METAL STREAM ME,1K0 ,2NK |
69240-10100-B0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-C0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 BLACK MC.,209 |
69240-10100-C0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-D0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 RED MC.,3T3 |
69240-10100-D0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-E0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 DK. BROWN M.M.,2NC ,4U3 |
69240-10100-E0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-F0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 YELLOW,2JU ,2PQ ,5A3 |
69240-10100-F0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-G0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 RADIANT GREEN ME.,2NJ ,6W9 |
69240-10100-G0 |
US $113.57 |
||
|
69240
|
69240
69240-10100-J0 Handle Assy, Rear Door Outside, Lh[12.2016 -] NGX50,ZYX10 BLUE ME.,2PR ,8T7 |
69240-10100-J0 |
US $113.57 |
||
|
69283A
|
69283A
69283-30060-C2 Plug, Front Door Inside Handle Bezel, Rh[12.2016 -] NGX50,ZYX10 BLACK,TRIM2# |
69283-30060-C2 |
US $6.63 |
||
|
69284D
|
69284D
69284-30060-C2 Plug, Front Door Inside Handle Bezel, Lh[12.2016 -] NGX50,ZYX10 BLACK,TRIM2# |
69284-30060-C2 |
US $6.63 |
||
|
69318D
|
69318D
69318-51010 Seal, Front Door Lock Hole, Rh[12.2016 -] NGX50,ZYX10 |
69318-51010 |
US $2.15 |
||
|
69410B
|
69410B
69410-47010 Plate Assy, Front Door Lock Striker[12.2016 -] NGX50,ZYX10 |
69410-47010 |
US $17.81 |
||
|
69730D
|
69730D
69730-10010 Cable Assy, Rear Door Lock Remote Control, Rh[12.2016 -] NGX50,ZYX10 |
69730-10010 |
US $12.67 |
||
|
69730E
|
69730E
69730-10020 Cable Assy, Rear Door Lock Remote Control, No.1[12.2016 -] NGX50,ZYX10 |
69730-10020 |
US $17.33 |
||
|
69730F
|
69730F
69730-10020 Cable Assy, Rear Door Lock Remote Control, No.1[12.2016 -] NGX50,ZYX10 |
69730-10020 |
US $17.33 |
||
|
69740D
|
69740D
69730-10010 Cable Assy, Rear Door Lock Remote Control, Rh[12.2016 -] NGX50,ZYX10 |
69730-10010 |
US $12.67 |
||
|
69770B
|
69770B
69770-10060 Cable Assy, Rear Door Inside Locking, Rh[12.2016 -] NGX50,ZYX10 |
69770-10060 |
US $12.67 |
||
|
69780B
|
69780B
69770-10060 Cable Assy, Rear Door Inside Locking, Rh[12.2016 -] NGX50,ZYX10 |
69770-10060 |
US $12.67 |
||
|
9011906897
|
9011906897
90119-06897 BOLT WWASHER |
90119-06897 |
from US $0.70 |
||
|
9014860083
|
9014860083
90148-60083 SCREW HEXALOBULAR |
90148-60083 |
US $1.08 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.66 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.33 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
