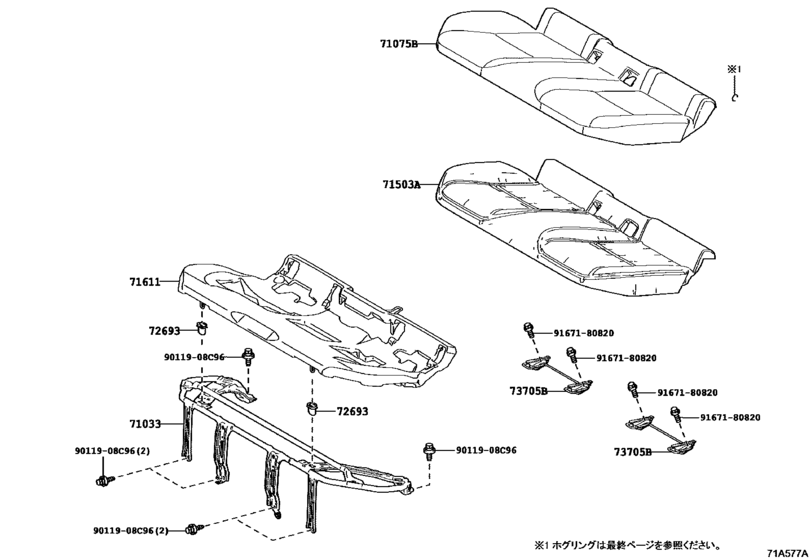

Rear Seat & Seat Track ([12.2016 - ] ｼｰﾄｸｯｼｮﾝ (1612- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71033
|
71033
71033-47010 Leg Sub-Assy, Rear Seat Cushion[12.2016 -] ZYX10 |
71033-47010 |
US $116.48 |
||
|
71075B
|
71075B
71075-10A30-C2 Cover, Rear Seat Cushion (For Bench Type)[12.2016 -] ZYX10..S BLACK,TRIM2# |
71075-10A30-C2 |
US $352.35 |
||
|
71503A
|
71503A
71503-10120 Pad Sub-Assy, Rear Seat Cushion[12.2016 -] ZYX10 |
71503-10120 |
US $176.18 |
||
|
71611
|
71611
71611-10100 Pad, Rear Seat Cushion[12.2016 -] ZYX10 |
71611-10100 |
US $106.29 |
||
|
72693
|
72693
72693-12080 Hook, Rear Seat Cushion Lock[12.2016 -] NGX50,ZYX10 |
72693-12080 |
from US $1.27 |
||
|
73705B
|
73705B
73705-10010 Bracket Sub-Assy, Cross Anchor[12.2016 -] NGX50,ZYX10 |
73705-10010 |
US $18.78 |
||
|
9011908C96
|
9011908C96
90119-08C96 New Genuine Part |
90119-08C96 |
US $1.43 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
